A4 Mk3
Power unit
TDI injection and glow plug system (6-cyl. 2.7 ltr., 3.0 ltr. 4-valve common rail)
Ignition system, glow plug system
Removing and installing engine speed senderG28
Removing and installing engine speed senderG28
Removing and installing engine speed sender -G28-
Removing

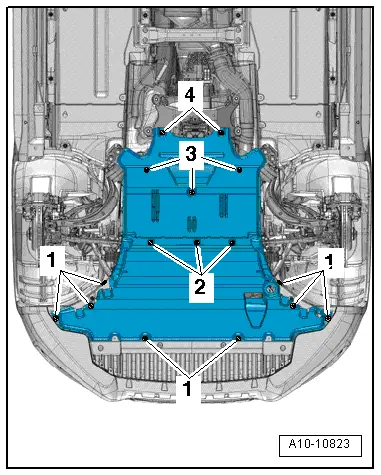

Vehicles with manual gearbox:
–
Release fasteners
-1, 2, 3-
and remove noise insulation panels.
Vehicles with multitronic gearbox:
–
Release fasteners
-1 ... 4-
and remove noise insulation panels.
All vehicles (continued):
–
Unplug electrical connector
-2-
.
–
Unscrew bolt
-1-
and detach engine speed sender -G28- downwards.
Installing
l
Tightening torque: 9 Nm
Install in reverse order.
