A4 Mk3

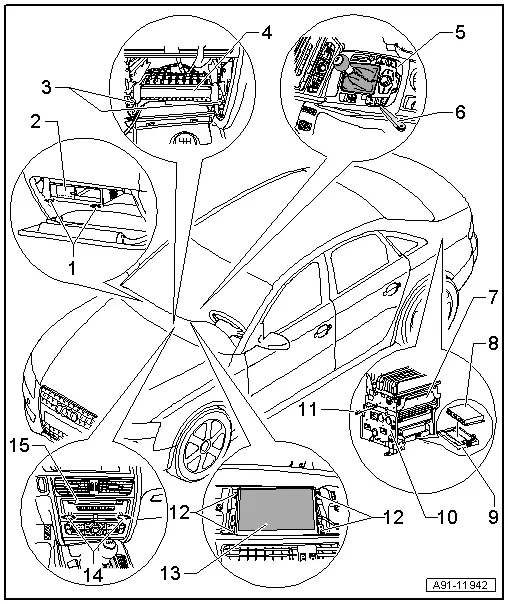

MMI (up to week 44/08) - overview |
1 - | Radio release tool -T10057- |
2 - | Connection for external audio sources -R199- |
q | Connectors (MMI) → Chapter |
q | Removing and installing → Chapter |
- Connection for external audio sources -R199- (AUX IN) |
q | Connectors (AUX IN) → Chapter |
q | Removing and installing (AUX IN) → Chapter |
3 - | Bolt |
q | 2 Nm |
- Bolt, bracket |
q | 2 Nm |
4 - | Control unit for front display and information control panel -J523- |
q | Connectors (up to week 44/08) → Chapter |
q | Removing and installing (up to week 44/08) → Chapter |
5 - | Multimedia system operating unit -E380- |
q | Connectors → Chapter |
q | Removing and installing → Chapter |
6 - | Removal wedge -3409- |
7 - | Radio -R- |
q | Connectors (up to week 44/08) → Chapter |
q | Removing and installing (up to week 44/08) → Chapter |
8 - | Satellite radio -R146- |
q | Connectors (up to week 44/08) → Chapter |
q | Removing and installing (up to week 44/08) → Chapter |
9 - | Bracket |
10 - | Rack |
11 - | Bolt |
q | 2 Nm |
12 - | Bolt |
q | 2 Nm |
13 - | Display unit for front information display and operating unit control unit -J685- |
q | Connectors for MMI (up to week 44/08) → Chapter |
q | Removing and installing → Chapter |
14 - | Radio release tool -T10057- |
15 - | CD changer -R41- |
q | Connectors (MMI) → Chapter |
q | Removing and installing (up to week 44/08) → Chapter |
