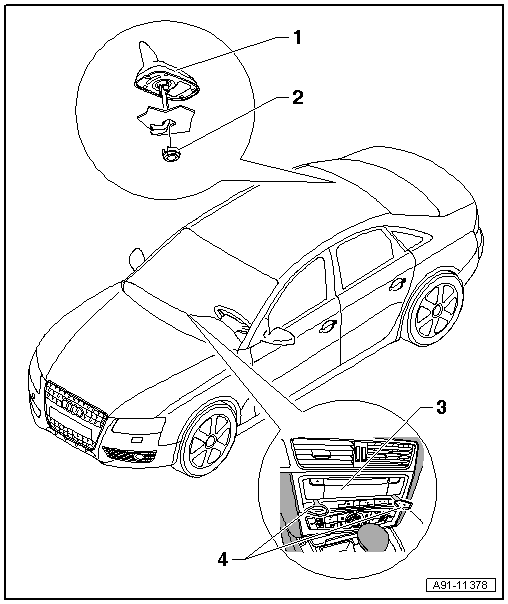

Overview (from week 45/08 onwards)

Overview (from week 45/08 onwards)
1 - Radio, telephone and navigation system aerial -R52-
q   Overview saloon → Chapter
q   Overview Avant → Chapter
2 - Nut
q   6 Nm
3 - Control unit 1 for information electronics -J794-
q   Pin assignment (MMI from week 45/08 onwards) → Chapter
q   Removing and installing → Chapter
4 - Radio release tool -T10057-
