A4 Mk3

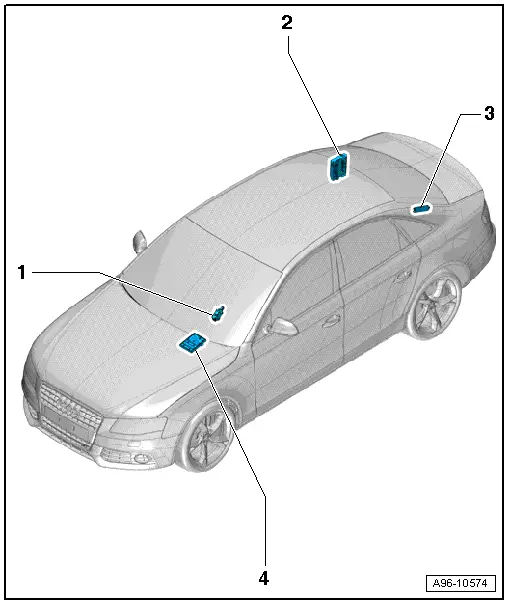

Overview of entry and start authorisation system |
1 - | Entry and start authorisation switch -E415- |
q | Fitting location: in dash panel on driver's side |
q | Removing and installing → Chapter |
2 - | Convenience system central control unit -J393- |
q | Fitting location: behind luggage compartment side trim (right-side) |
q | Removing and installing → Chapter |
3 - | Central locking and anti-theft alarm system aerial -R47- |
q | Integrated in rear window |
q | Removing and installing → Rep. gr.91 |
4 - | Electronic steering column lock control unit -J764- |
q | Removing and installing → Rep. gr.48 |
