Lights and switches in front seats & luggage compartment: Overview

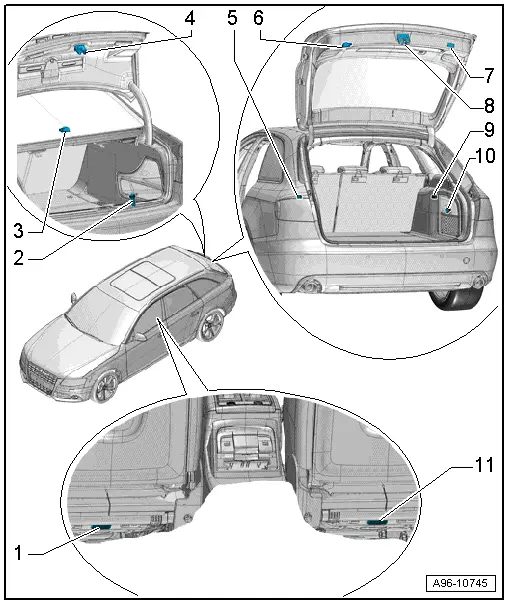

Overview of lights and switches in front seats, luggage compartment |
1 - | Rear left footwell light -W45- |
q | Removing and installing → Chapter |
2 - | 12 V socket 3 -U19- |
q | Saloon |
q | Removing and installing → Chapter |
3 - | Luggage compartment light -W3- |
q | Saloon |
q | 12 V, 5 W |
q | Removing and installing → Chapter |
4 - | Rear lid contact switch |
q | Saloon |
q | Removing and installing → Chapter |
5 - | Luggage compartment light on left -W18- |
q | Avant |
q | 12 V, 5 W |
q | Removing and installing → Chapter |
6 - | Surround lighting 1 in rear lid -W61- |
q | Avant |
q | 12 V, 5 W |
q | Removing and installing → Chapter |
7 - | Button to close rear lid in luggage compartment -E406- |
q | Avant |
q | Removing and installing → Chapter |
8 - | Rear lid contact switch |
q | Avant |
q | Removing and installing → Chapter |
9 - | Luggage compartment light -W3- |
q | Avant |
q | 12 V, 5 W |
q | Removing and installing → Chapter |
10 - | 12 V socket 3 -U19- |
q | Avant |
q | Removing and installing → Chapter |
11 - | Rear right footwell light -W46- |
q | Removing and installing → Chapter |
