A4 Mk3

Removing and installing trailer detector control unitJ345
Removing and installing trailer detector control unit -J345-
–  When renewing control unit select „Replacement“ function for appropriate control unit in „Guided Fault Finding“ or „Guided Functions“ → Vehicle diagnostic tester.

Removing
–  Open luggage compartment side trim (right-side).

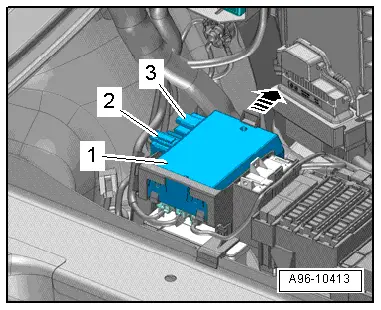

–  Release retaining clip -arrow- and swivel trailer detector control unit -J345--item 1- out of frame.
–  Unplug electrical connectors -2- and -3-.
Installing
Install in reverse order.
  A96-10413
