A4 Mk3
Vehicle electrics
Electrical system
Lights, lamps, switches outside
Fog lights - vehicles up to model year 2012
Removing and installing fog lights
Removing and installing fog lights
Removing and installing fog lights
Removing
–
Switch off ignition and take out ignition key.
–
Turn light switch to position „0“.
–
Use a screwdriver to release fasteners
-arrows A-
.
–
Pull air intake grille
-1-
off bumper cover
-arrow B-
.
–

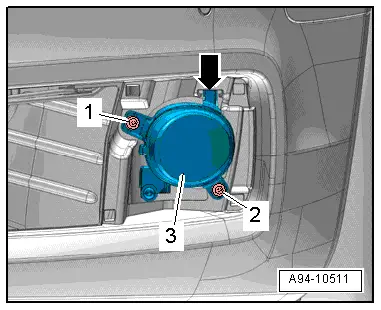

Remove bolts
-1-
and
-2-
.
–
Take fog light housing
-3-
out of bumper cover, at the same time guide retainer
-arrow-
out of mounting.
–
Unplug electrical connector.
Installing
l
Tightening torque
→ Chapter
Installation is carried out in the reverse order; note the following:
–
Adjust fog lights
→ Chapter
.
