Renewing side light bulb M1/M3 or daytime running light bulb L174/L175
Renewing side light bulb -M1-/-M3- or daytime running light bulb -L174-/-L175-

Removing

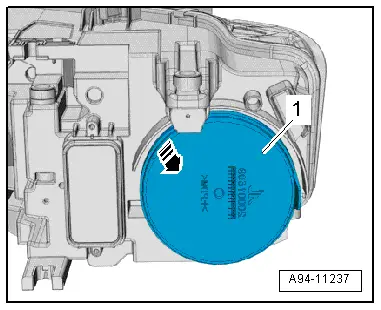

–  Right-side: remove air cleaner housing → Rep. gr.23 or → Rep. gr.24.
–  Pull housing cover -1- off headlight housing -arrow-.
  A94-11237

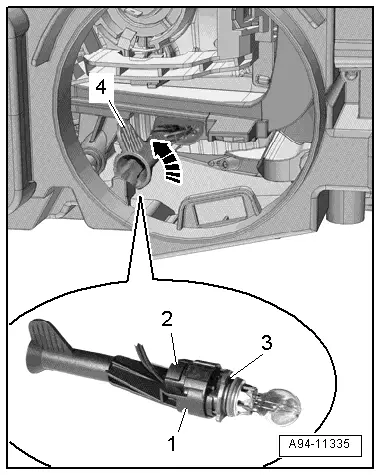

–  Turn bulb holder -4- for left-side headlight clockwise and for right-side headlight anti-clockwise -arrow-.
–  Disengage bulb holder upwards from mounting and pull it out of headlight housing.
–  Release retaining clip -2- and pull electrical connector -1- off bulb holder -3- with bulb.
  A94-11335
Installing
Installation is carried out in the reverse order; note the following:
–  Plug in electrical connector and insert new bulb in housing; do not touch glass part of bulb with bare hands.
–  Fit bulb holder into mounting on headlight housing and lock.

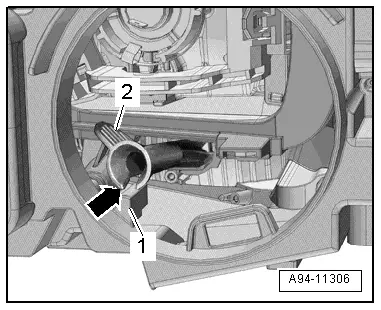

l  The opening -arrow- in the bulb holder -2- must be opposite the mounting -1-.
  A94-11306

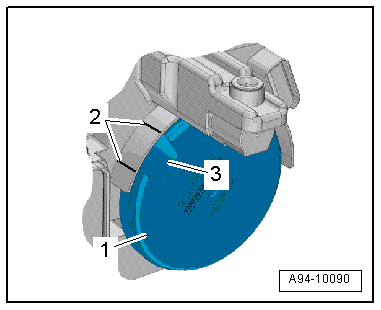

–  Close housing cover -1- and make sure tab -3- and marks -2- on headlight housing align.
–  Right-side: install air cleaner housing → Rep. gr.23 or → Rep. gr.24.
