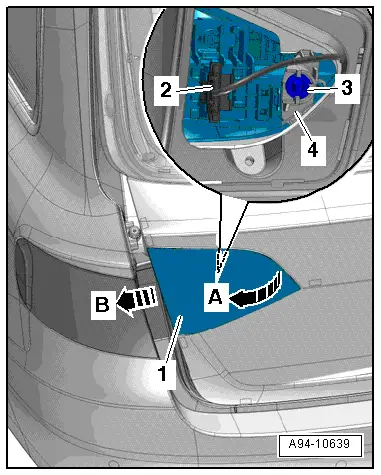

| Position inner tail light cluster at outer edge of rear lid. |
–
| Slide retainer bracket -2- onto stud of inner tail light. |
l
| Guide pin -4- on tail light must engage in mounting -3- on retainer bracket. |
Note As the nut is tightened the retainer bracket becomes wedged in the rear lid -arrows-. |
|
|
|
