A4 Mk3

Renewing wiper blade
Renewing wiper blade

Removing
–  Move windscreen wipers to service position → Chapter.
–  Lift wiper arm off windscreen.
–  Press retaining clip -arrow A-.
–  Slide wiper blade -1- off wiper arm -2--arrow B-.
–  Remove wiper blade.
Installing
  Caution
Risk of damage to body.
The wiper blades for driver's and front passenger's side have different lengths.
Installation is carried out in the reverse order; note the following:
  A92-10076

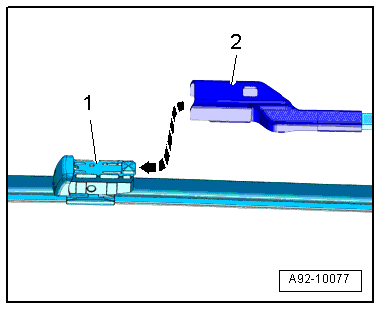

–  Guide wiper blade -1- into wiper arm -2- in parallel position -arrow-. Make sure that retaining clip on wiper blade is heard to engage in wiper arm when fitting wiper blade.
–  The wipers will run back from the „service position“ when you operate the wiper switch or when road speed exceeds 6 km/h.
  A92-10077
