Drive Belt: Diagrams

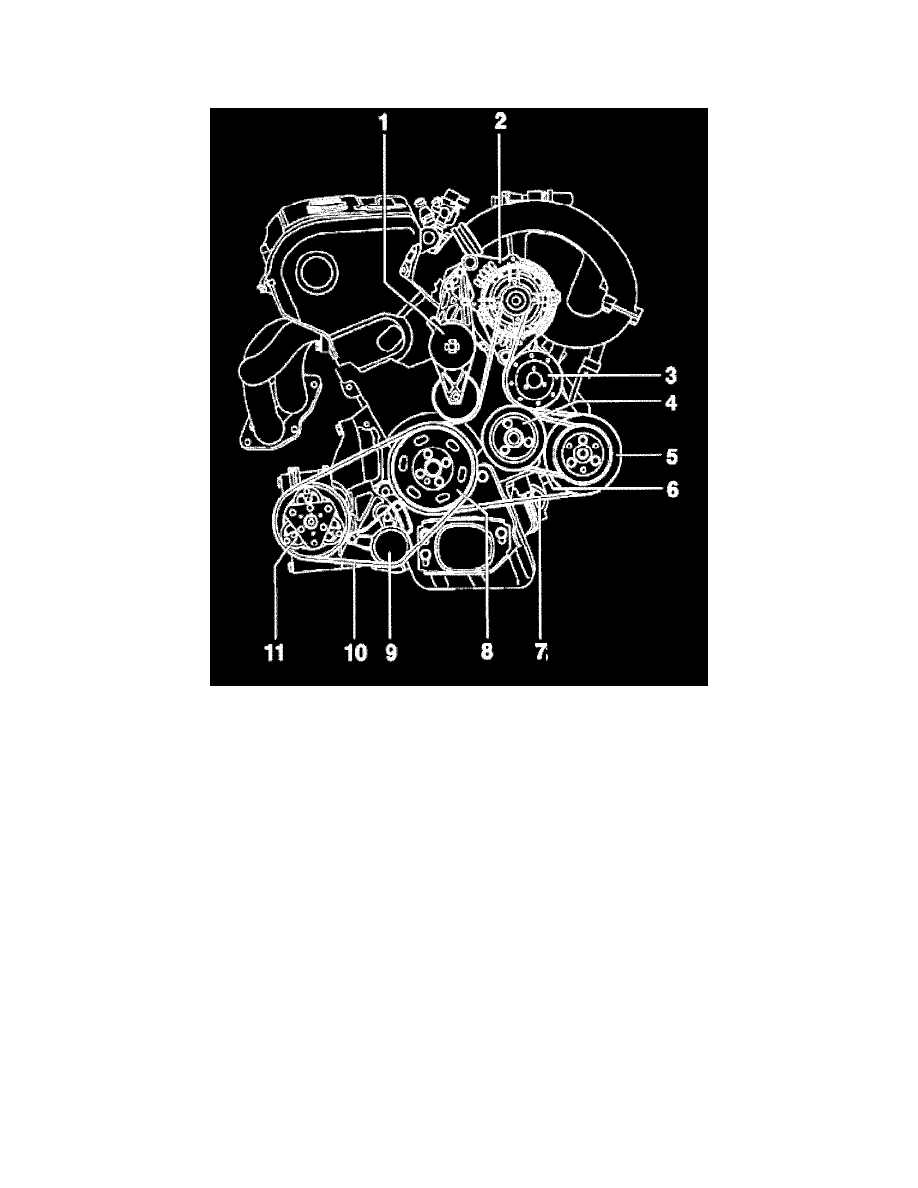

V-belt and ribbed belt, routing overview

1 - Ribbed belt tensioner
2 - Generator
3 - Viscous clutch
4 - Coolant pump
5 - Power steering pump
6 - V-belt

-

For coolant pump

-

Removing and installing,  See: Service and Repair/V belt, Removing and Installing

7 - Ribbed belt

-

For generator, power steering pump and viscous fan

-

Removing and installing,  See: Service and Repair/Ribbed Belt, Removing and Installing

8 - Vibration damper
9 - Ribbed belt tensioner

-

For A/C compressor

10 - Ribbed belt

-

For A/C compressor

-

Removing and installing,  See: Service and Repair/Ribbed Belt For Air Conditioning

11 - A/C compressor
