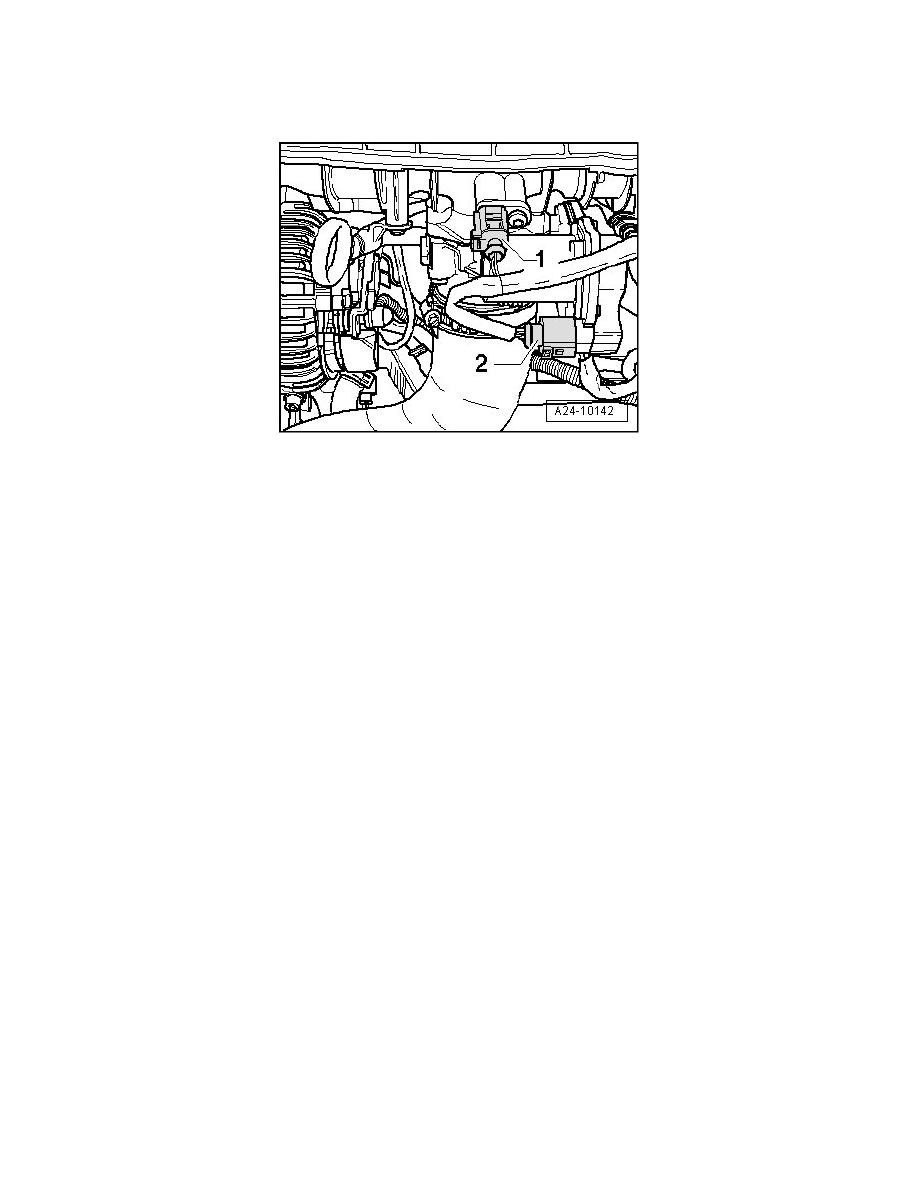

Electronic Throttle Control Module: Locations

Component Locations Overview

Components

2

Throttle valve control module (J338)
