A4 Sedan V6-3.2L (BKH) (2007)
License Plate Lamp: Service and Repair
License Plate Lamp
License Plate Lamp
CAUTION!
Before beginning repairs on the electrical system:
‹› Obtain the anti-theft radio security code.
‹› Switch the ignition off.
‹› Disconnect the battery Ground (GND) strap.
‹› After reconnecting vehicle battery, re-code and check operation of anti-theft radio. Also check operation of clock and power windows
according to Repair Information and/or Owner's Manual.
‹› Steps after reconnecting voltage supply => See: Starting and Charging/Battery/Description and Operation/Battery.
Removing

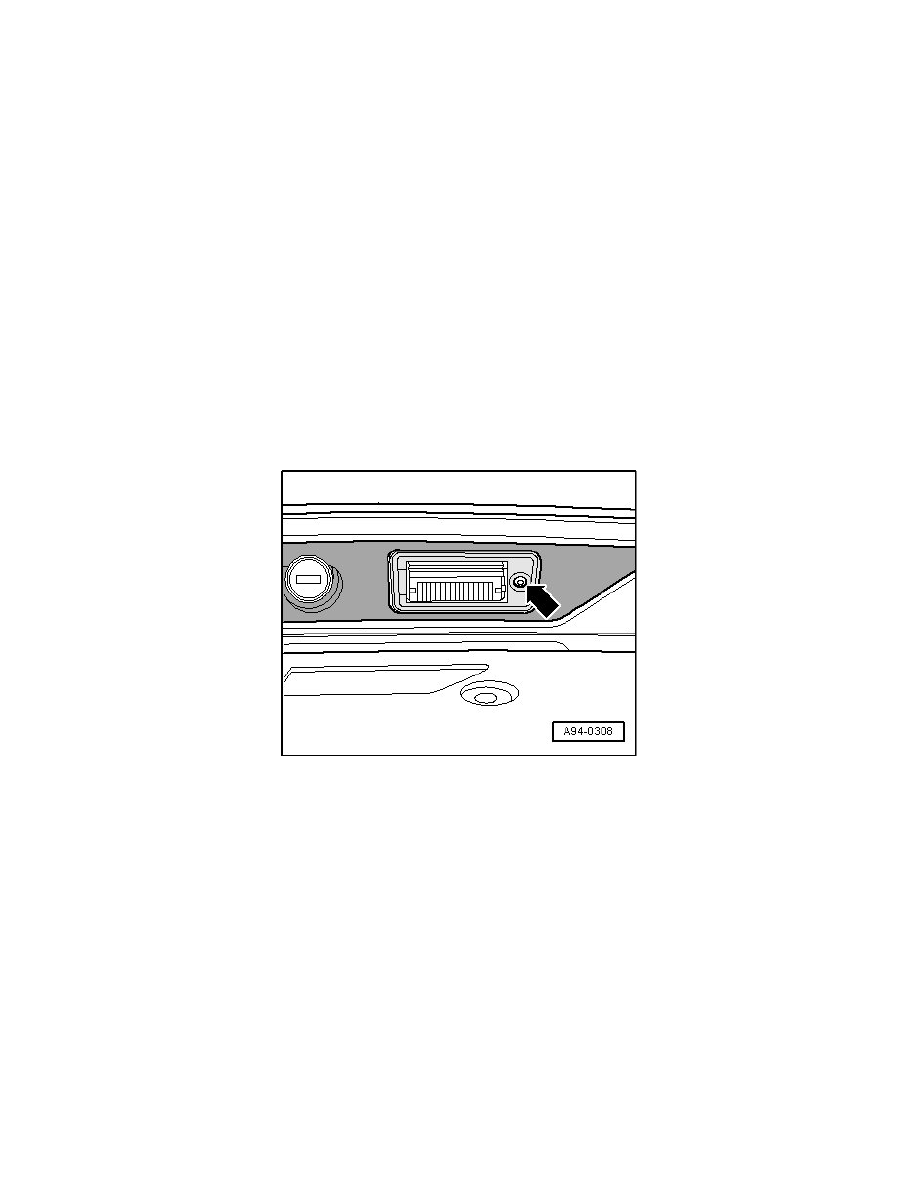

‹› Only the right license plate light is shown in illustration.
-
Remove bolt - arrow - in handle recess.
-
Pry out bulb carrier from handle recess.
-
Remove bulb (12 V, 5 W) from terminal socket.
Installing
Installation is the reverse of removal.
