Audi Workshop Service and Repair Manuals > A5 > Power transmission | Servicing 6-speed manual gearbox 0B2, four-wheel drive | Technical data

Location on gearbox

-I- Four-wheel drive (manual gearbox 0B2)

t	-Arrow A- Manual gearbox 0B1 or 0B2 → Fig.

t	-Arrow B- Code letters and production date → Fig.

t	-Arrow C- Rear flange shaft for four-wheel drive

-II- Front-wheel drive (manual gearbox 0B1)

t	-Arrow A- Manual gearbox 0B1/2 → Fig.

t	-Arrow B- Code letters and production date → Fig.

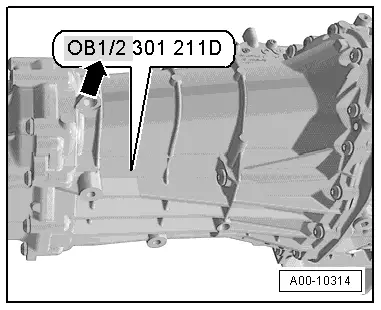

Manual gearbox 0B1 or 0B2 -arrow-

t	0B1 - gearbox version for front-wheel drive

t	0B2 - gearbox version for four-wheel drive

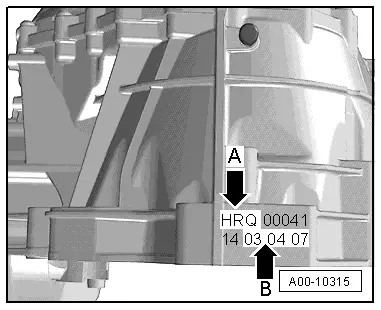

Code letters -arrow A- and production date of gearbox -arrow B-

Example:	HRQ	03 04 07
	Code letters	Production date: 03.04.2007

Note

t	Additional data are manufacture-related.

t	The code letters for the gearbox are also given on the vehicle data stickers.
