A6 Quattro Sedan V6-3.2L (BKH) (2005)
Rear Vision Camera: Service and Repair

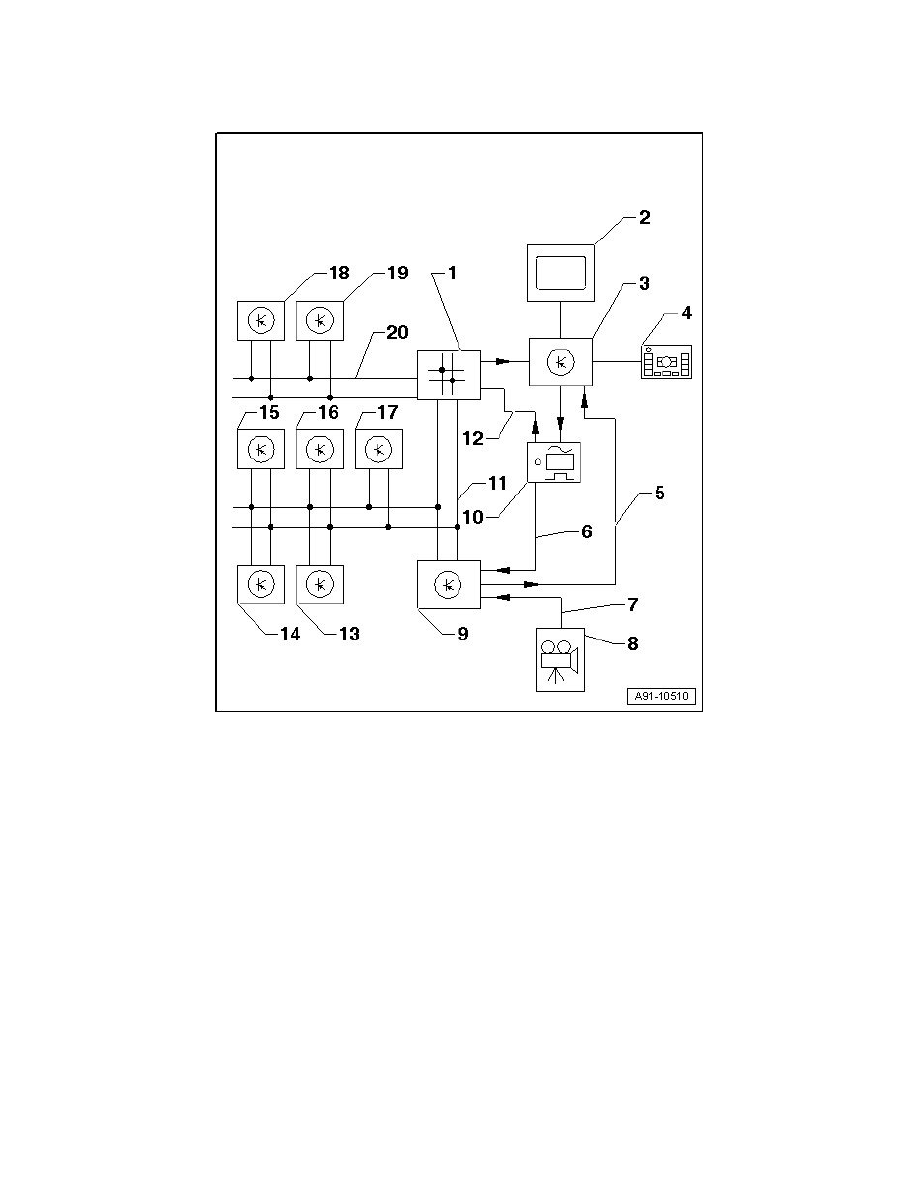

Rearview Camera System Control Module
Rearview Camera System Control Module
The Rear View Camera System Control Module (J772) is located behind the luggage compartment right front side trim.
-
If control module is replaced, select "Replacement" function for appropriate control module in "Guided Fault-Finding" routine.
Use the Vehicle Diagnosis, Testing and Information System (VAS 5051A) to do so.
-
Turn off all electrical consumers.
-
Remove ignition key.
Removing
Vehicles with luggage compartment storage bin:
-
Open right luggage compartment storage bin.
Vehicles without luggage compartment storage bin:
-
Remove luggage compartment right side trim.
All vehicles:
The Rear View Camera System Control Module (J772) is only wedge into the bracket.
-
Disconnect connectors - 2 - on Rear View Camera System Control Module (J772) - 1 -.
-
Unclip Rear View Camera System Control Module (J772) - 1 - in - direction of arrow - and remove it upward.
Installing
-
Install in reverse order.
-
Perform calibration => [ Rear View Camera System Calibration ] See: Testing and Inspection.
