A6 Quattro Sedan V6-3.2L (BKH) (2005)
Power Distribution Module: Service and Repair
Vehicle Electrical System Control Module
Vehicle Electrical System Control Module
Removing
-
If the control module was replaced, select the "Replace" function for the respective control module in "Guided Fault Finding" or " Guided
Functions" Vehicle diagnosis, testing and information system VAS 5051.
-

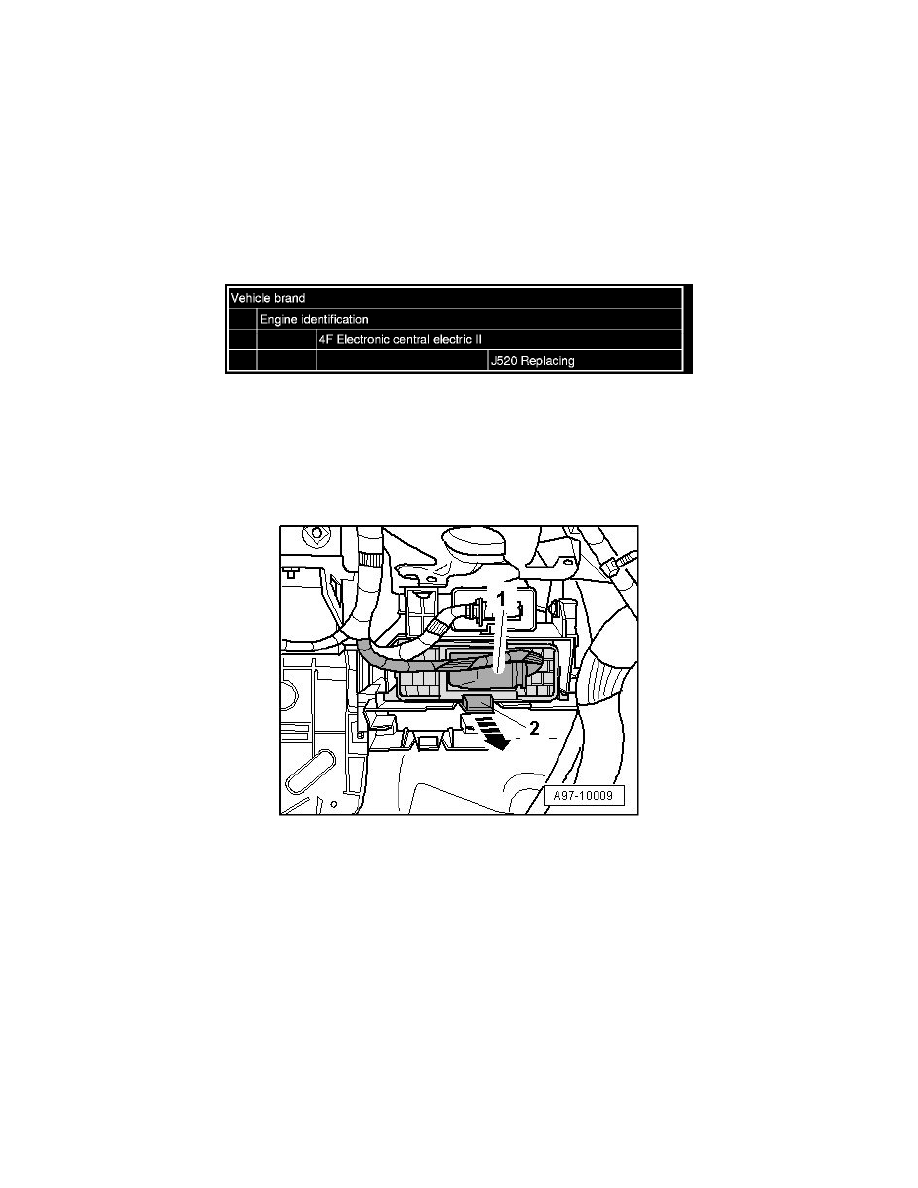

Select the function or path:
-
Switch off ignition and remove ignition key.
-
Remove lower instrument panel cover on driver's side.
-
Remove nuts - arrows - and remove Vehicle Electrical System Control Module (J519) - item 2 -.
‹› Disregard item - 1 -.
-
Unclip fuse panels - 4 through 6 -.
