A6 Quattro Sedan V6-3.2L (BKH) (2005)
-

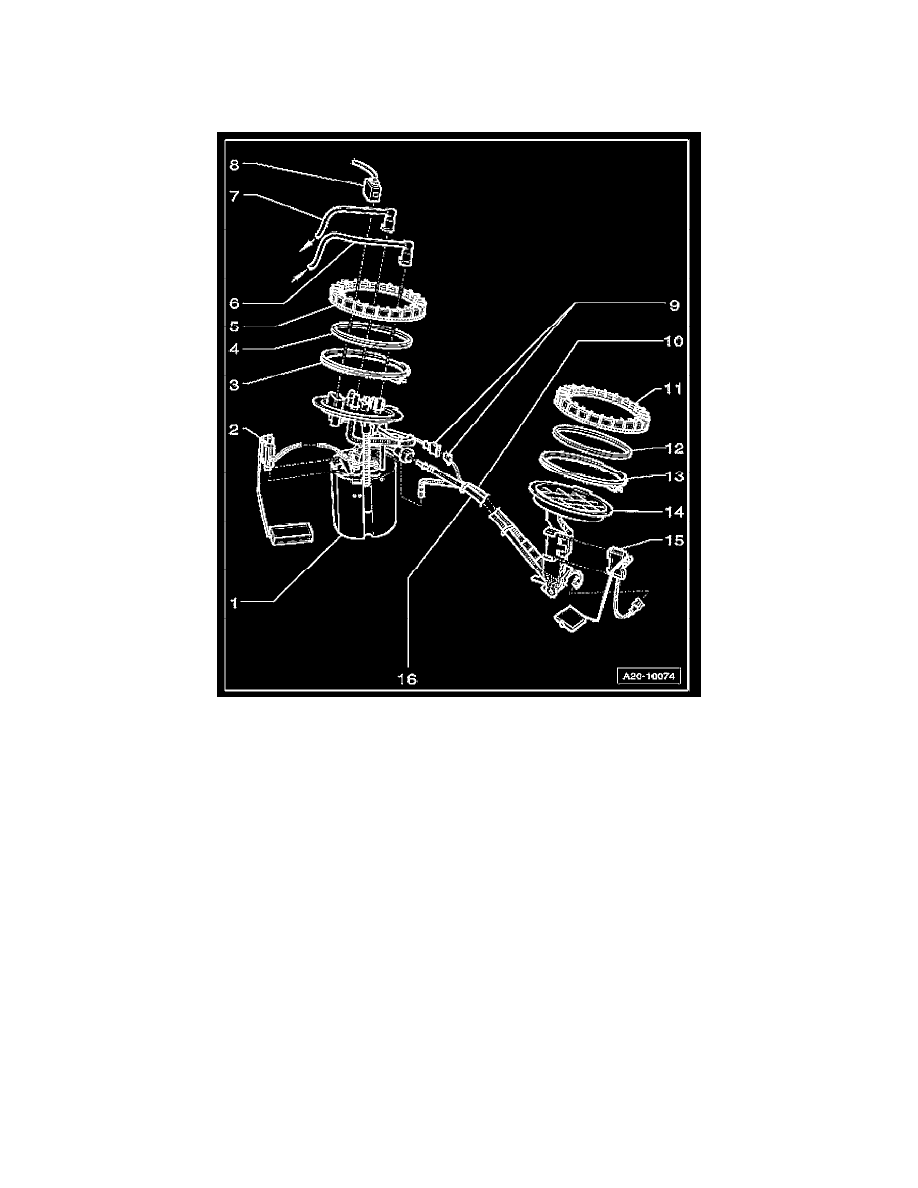

Carefully insert Fuel Level Sensor 2 G169 in fuel tank opening.
-
Install new locking flange seal dry.
-
Press locking flange down against spring pressure and bring it into installation position.
-
Tab - 2 - on locking flange must lie between tabs - 1 - and - 3 - on threaded ring.
NOTE: To install, position union nut so that the double ridge - 1 - of the ribs aligns with tab - 2 - of the locking flange. This will make it easier
for union nut to engage beginning of Fuel Level Sensor 2 G169, removing and installing thread - 3 -.
-
Tighten union nut for left locking flange.
CAUTION: When tightening union nut, make sure the locking flange does not turn with it, otherwise the locking flange seal may not be secure.
-
Install rear seat bench.
-
Connect battery. Observe safety precautions after connecting battery.
