A6 Quattro Sedan V8-4.2L (BVJ) (2007)
Rear Door Panel: Service and Repair
Inside Door Release Mechanism

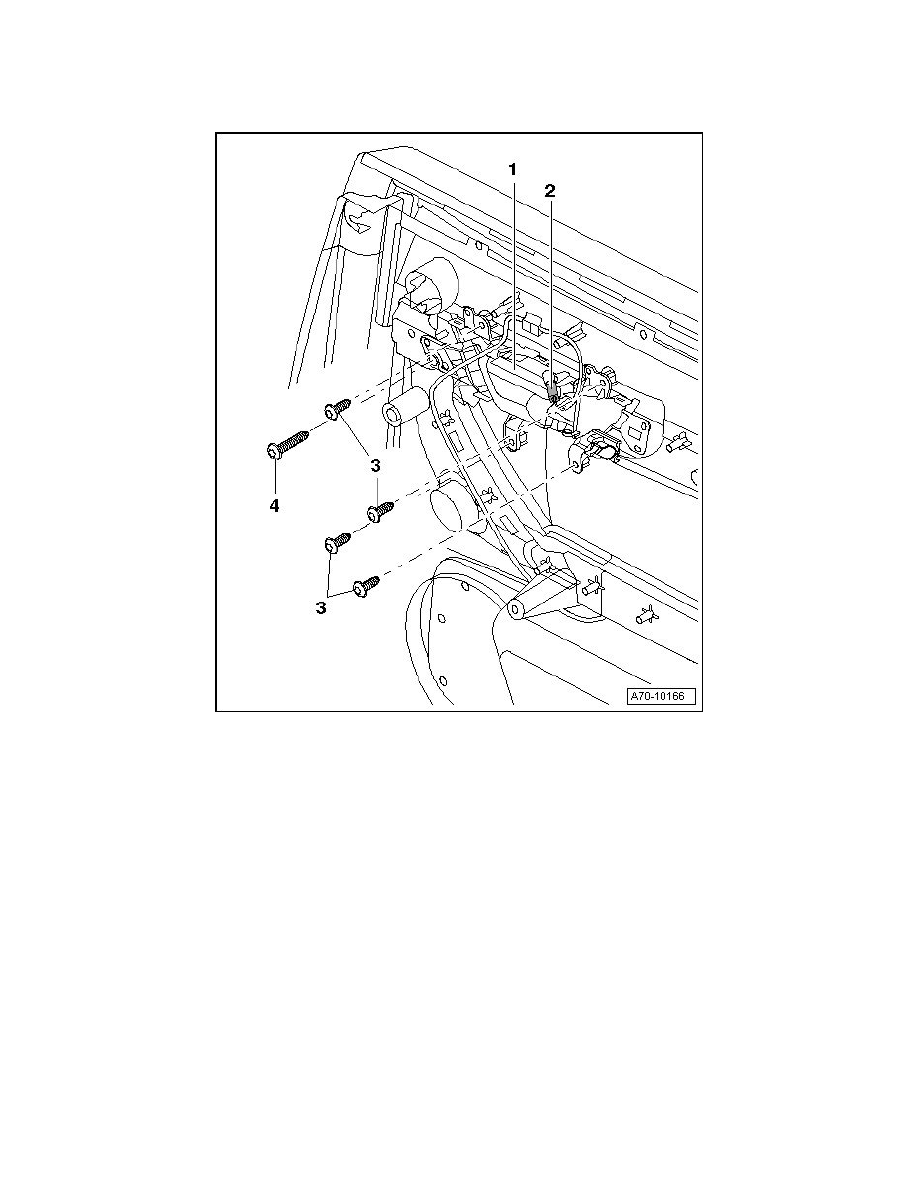

Inside Door Release Mechanism
1
Interior door mechanism
‹› Removing
-
Remove door trim => [ Rear Door Trim ].
-
Remove door handle lighting connector - 2 -.
-
Remove screws - 3 - (Qty. 4) and - 4 -.
-
Remove interior door mechanism - 1 - from inside.
‹› Installing
To install, perform the steps used in removal in reverse order.
2
Door handle lighting connector
3
Screws (Qty. 4)
‹› Tightening specification 1 Nm
4
Bolt
