A6 Quattro Sedan V8-4.2L (BVJ) (2007)
/Page-7082001.png)
Rear Subframe: Service and Repair
Type 1

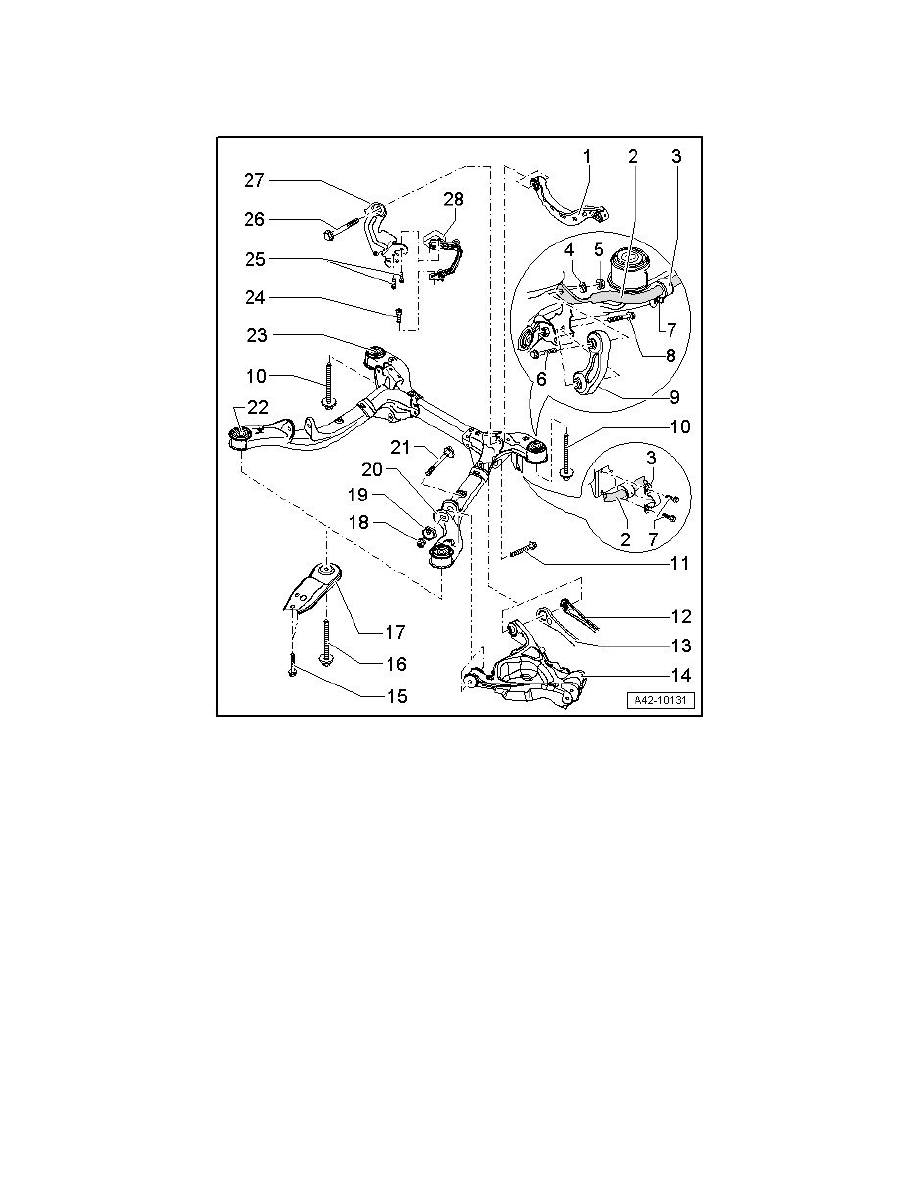

Subframe, Stabilizer Bar and Coupling Rod Assembly Overview
1
Upper control arm
2
Stabilizer bar
‹› Stabilizer must be removed together with coupling rod.
‹› Removing and installing, refer to => [ Coupling Rod and Stabilizer Bar ] See: Steering and Suspension/Suspension/Stabilizer Bar/Service and
Repair/Removal and Replacement/Rear Suspension/Coupling Rod and Stabilizer Bar
Replacing bearings for stabilizer bar, refer to => [ Stabilizer Bar Mount ] See: Steering and Suspension/Suspension/Stabilizer Bar/Service and
Repair/Removal and Replacement/Rear Suspension/Stabilizer Bar Mount
3
Clamp
4
Washer
5
Nut
‹› 65 Nm
6
Bolt
7
Bolt
