A6 Quattro Sedan V8-4.2L (BVJ) (2007)
Glove Compartment Lock Actuator: Service and Repair
Glove Compartment Cover Remote Control Unlock Motor
Removing
-
Switch off ignition and remove ignition key.
-
Remove glove compartment => [ Glove Compartment ].
-

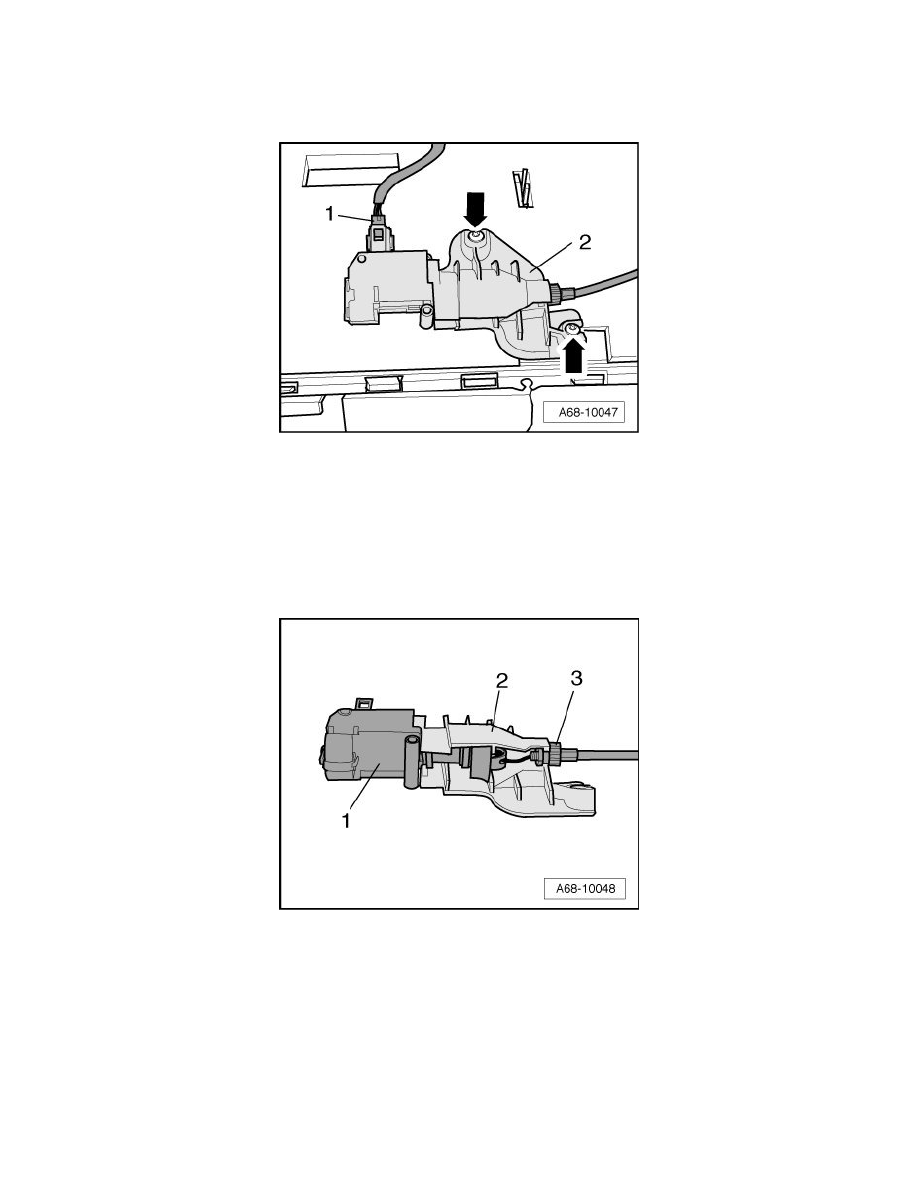

Disconnect the connector - 1 -.
-
Remove screws - arrows - and remove remote control glove compartment unlocking positioning motor - 2 - together with cover.
-
Remove cable - 3 - with adjusting nut on bracket in cover.
-
Remove cover - 2 - from remote control glove compartment unlocking positioning motor - 1 -.
-
Turn cable - 3 - and press nipple - 2 - out of operating rod - 1 - on remote control glove compartment unlocking positioning motor.
