A6 Quattro Sedan V8-4.2L (BVJ) (2007)
Wheel Speed Sensor: Service and Repair
Speed Sensor, Rear Axle
Removing
-
Raise vehicle.
-

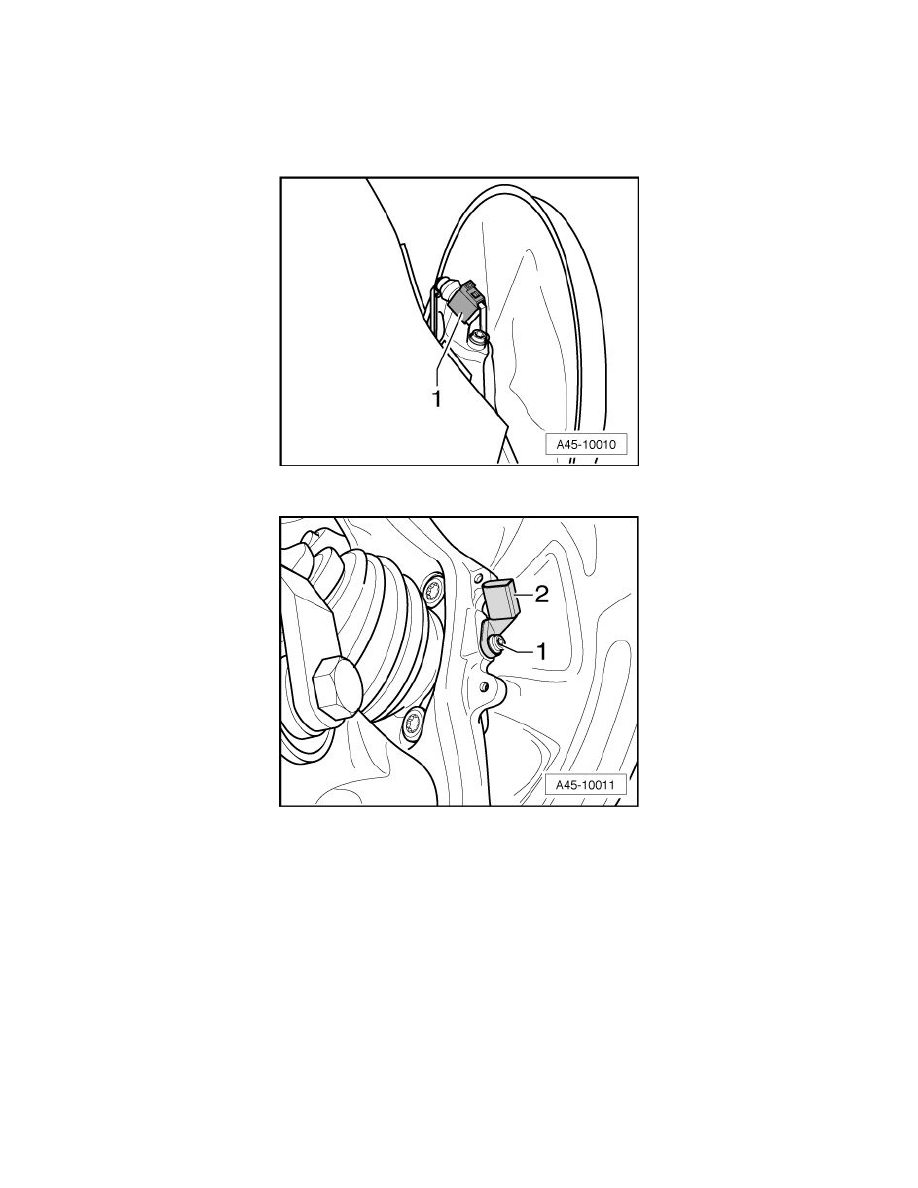

Separate speed sensor and speed sensor wiring connector - 1 -.
-
Remove bolt - 2 - from wheel bearing housing.
-
Remove ABS speed sensor from wheel bearing housing.
Installing
-
Before inserting speed sensor, clean hole inner surface and coat speed sensor all-round with Polycarbamide grease (G 000 650)
-
Insert the speed sensor into the hole inside the wheel bearing housing and then tighten the screw to 18 Nm.
-
Connect speed sensor to speed sensor wiring.
