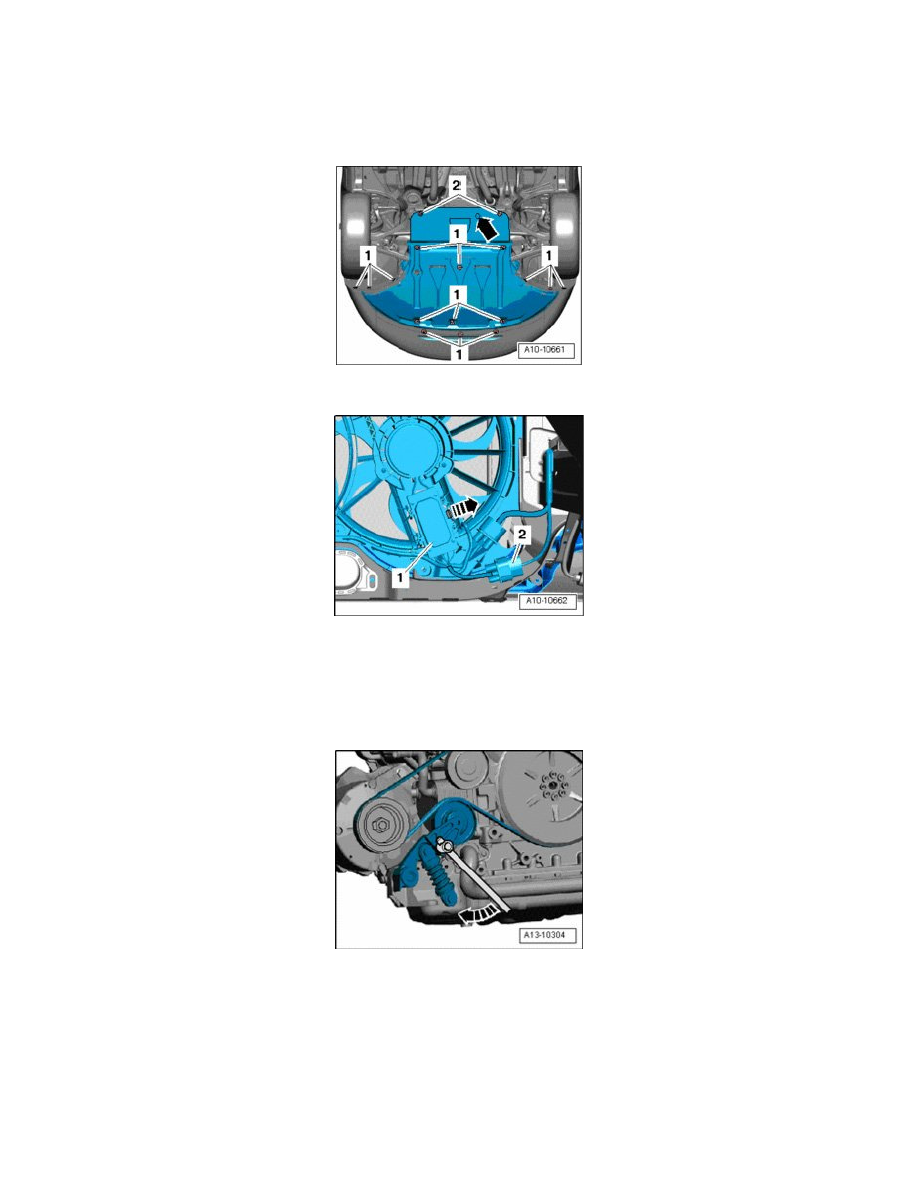

A6 Quattro Sedan V8-4.2L (BVJ) (2007)
/Page-2026002.png)
‹› When installing, make sure it is seated correctly on pulleys
5
Cover cap
6
Bolt
‹› 22 Nm
7
Generator
8
Bolt
‹› M8: 22 Nm
‹› M10: 46 Nm
9
Alignment bushing
‹› For generator bracket
‹› 2 pieces
10
Generator bracket
11
Bolt
‹› 9 Nm
12
Bracket
‹› For idler pulley
13
Idler roller for ribbed belt
14
Bolt
‹› 22 Nm
15
Vibration damper
‹› Removing and installing => [ Vibration Damper, ] See: Cylinder Block Assembly/Harmonic Balancer - Crankshaft Pulley/Service and Repair
16
Bolt
‹› Replace
‹› Tightening order => [ Vibration damper tightening sequence ]
17
Alignment bushing
‹› 2 pieces
18
Bracket
‹› For ribbed belt tensioner
19
Bolt
‹› Different lengths
‹› 9 Nm
Vibration damper tightening sequence
