A6 Quattro Sedan V8-4.2L (BVJ) (2007)

Page 3
background image

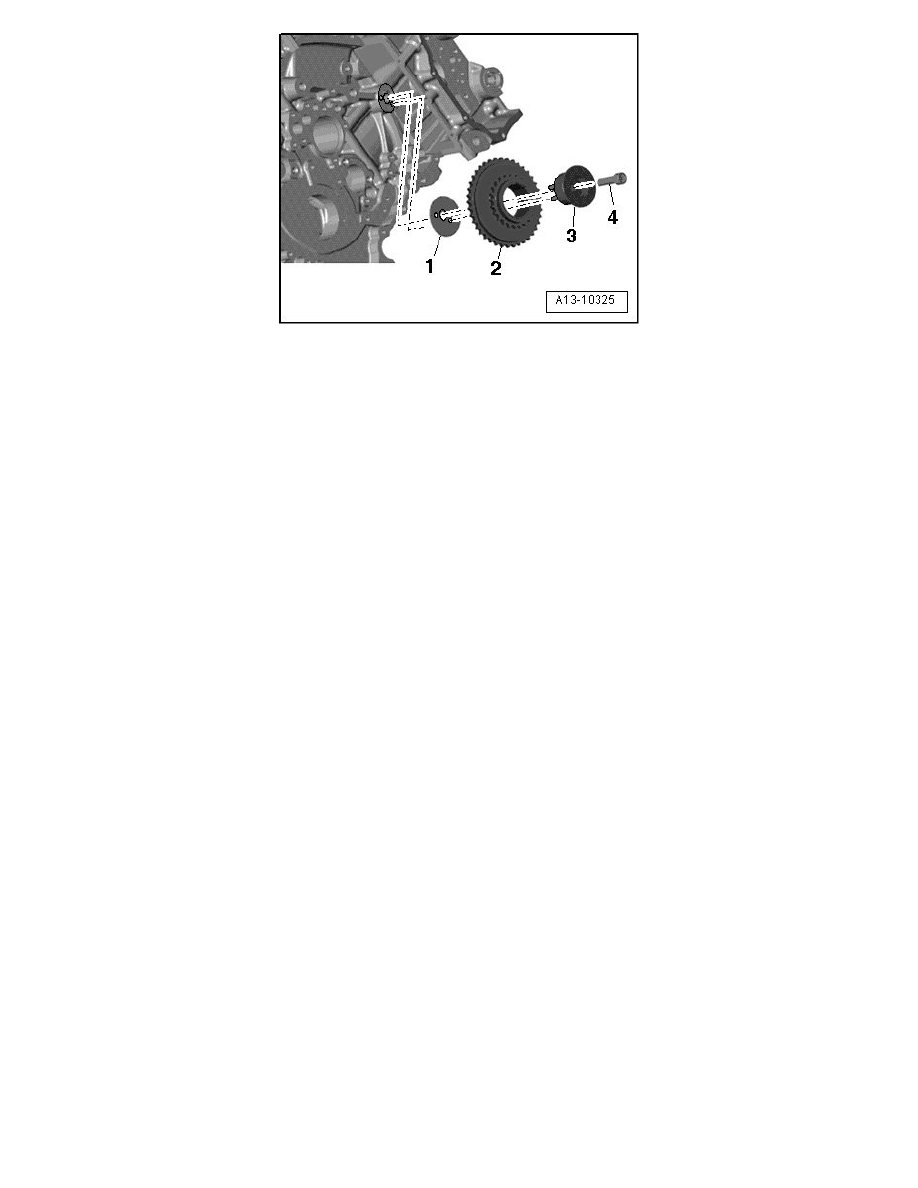

‹› Alignment bushings in right camshaft timing chain drive sprocket mounting pins - 3 - must engage in holes in thrust washer -  1 - and cylinder

block.

2

Drive sprocket for right camshaft timing chain

4

Bolt
