A6 Quattro Sedan V8-4.2L (BVJ) (2007)
/Page-5746003.png)
-

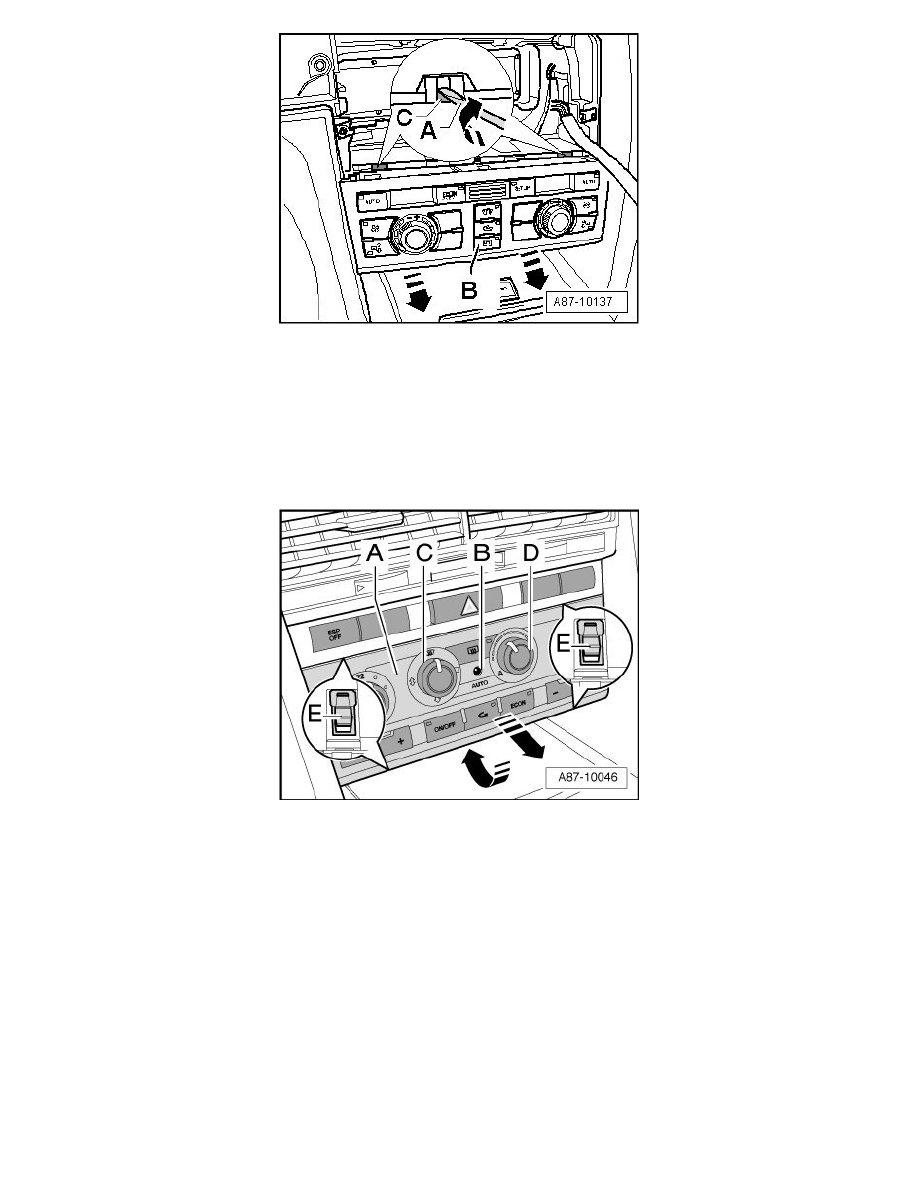

Remove center instrument panel vent (A/C control head with a panel colored "Nero")
-
Using two small screwdrivers - A -, disengage the latches of both top clips - C - (above slots in instrument panel center section), then grasp under
the Climatronic Control Module (J255) A/C control head - B - and carefully pull it out of center console
Removing on a vehicle with a production date up to beginning of 2006
-
Grasp under Climatronic Control Module (J255) - A - and carefully pull it out of center console (A/C control head with a panel colored
"pearl-gray metallic").
Continued procedure
-
Disengage catches of connector - D - by pressing retaining tabs - F - and disconnect this connector.
