A6 Quattro Sedan V8-4.2L (BVJ) (2007)
-

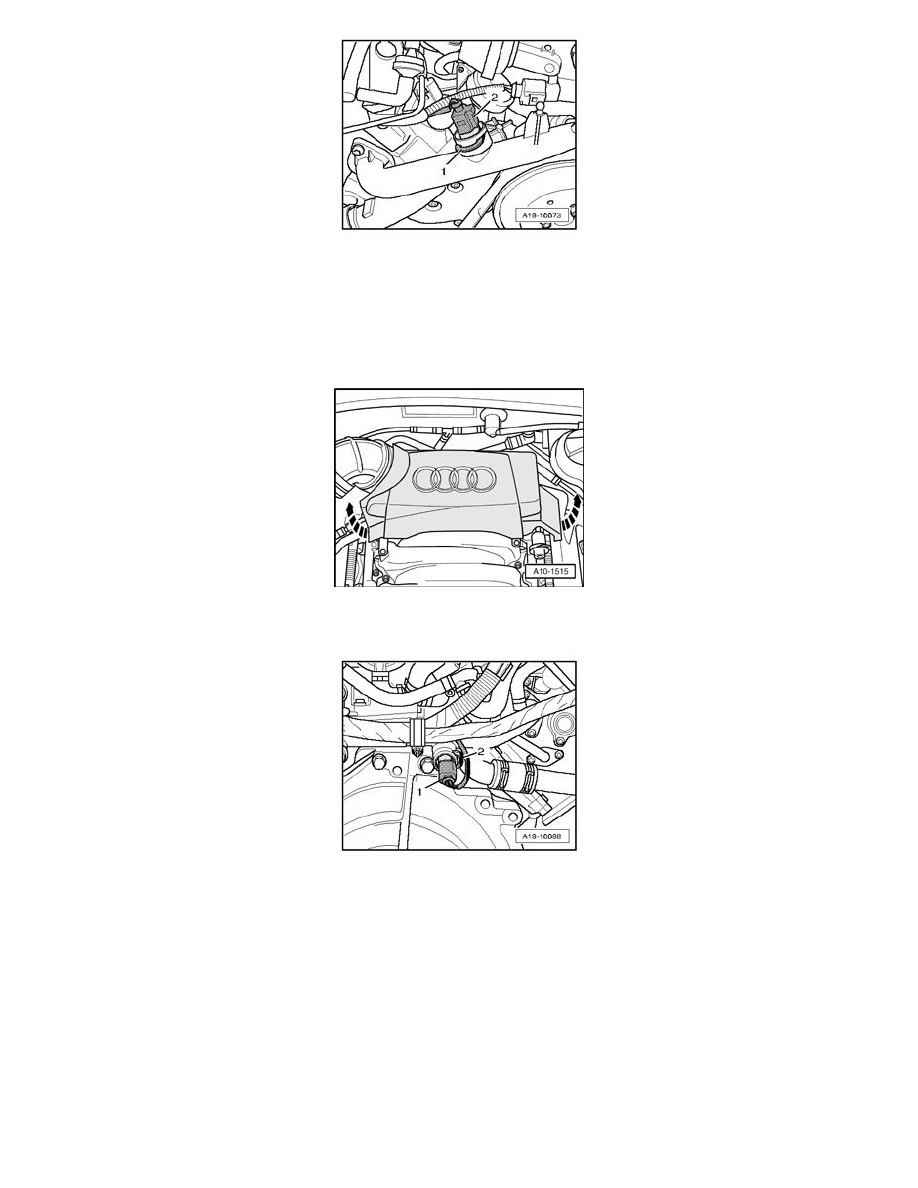

Disconnect electrical harness connector - 2 - at Engine Coolant Temperature (ECT) Sensor G62.
NOTE: Disregard - item 1 -.
Installation is performed in the reverse order of removal.
Electrical harness connector at Engine Coolant Temperature (ECT) Sensor G62, disconnecting - vehicles with 4.2l MPI engines
Work procedure
-
Remove rear engine cover - arrows -.
-
Disconnect electrical harness connector - 1 - at Engine Coolant Temperature (ECT) Sensor G62 using assembly tool T10118.
NOTE:
-
For clarity, depicted without engine.
-
Disregard - item 2 -.
Installation is performed in the reverse order of removal.
Electrical harness connector at Engine Coolant Temperature (ECT) Sensor G62, disconnecting - vehicles with 4.2l FSI engine
