A6 Quattro Sedan V8-4.2L (BVJ) (2007)
/Page-8085002.png)
-

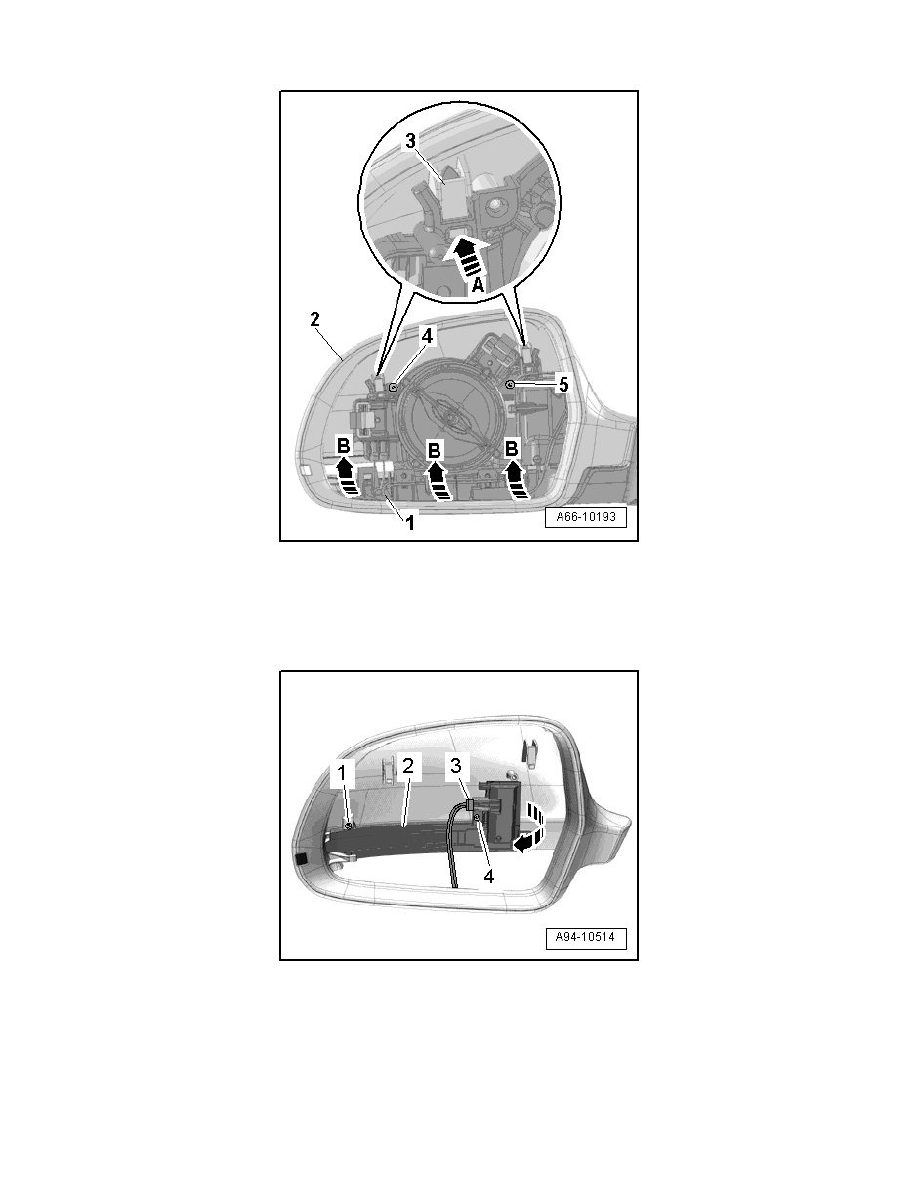

Remove the screws - 4 - and - 5 -.
-
Release the retaining tabs - 3 - in the - direction of arrow A -.
-
Release the retaining clip - 1 - and remove the exterior rearview mirror housing - 2 - from the cover - B arrows -.
-
Pull the exterior mirror housing upward and disconnect the electrical connector - 3 - for the LED - 2 - in the mirror.
‹› Ignore items - 1 and 4 - and the - arrow -.
-
Remove bolts - 5 - and - 6 -.
