A6 Quattro Sedan V8-4.2L (BVJ) (2007)
-

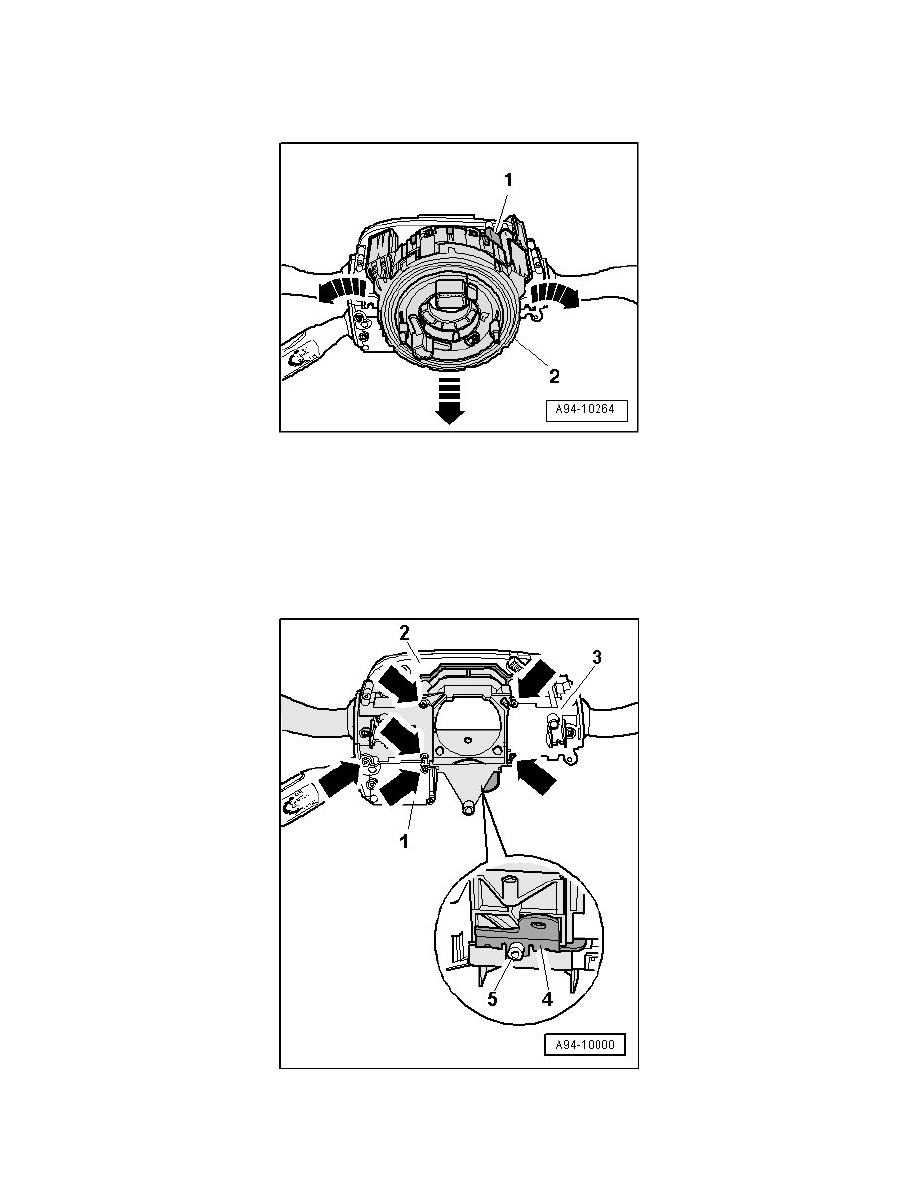

Disengage Cruise Control Switch (E45) - item 1 - from steering column switch module (SCSM).
-
Remove bolt - 5 - and remove retaining bracket - 4 -.
Installing
‹› Tightening specification. Refer to=> [ Steering Column Switch Module Assembly Overview ] See: Relays and Modules/Relays and Modules -
Steering and Suspension/Relays and Modules - Steering/Steering Column Control Module/Service and Repair/Steering Column Switch Module
Assembly Overview.
Install in reverse order of removal, observing the following:
-
Make sure all fasteners and electrical connectors are properly engaged.
-
Install Steering Column Switch Module (SCSM). Refer to => [ Steering Column Switch Module ].
