A6 Quattro Sedan V8-4.2L (BVJ) (2007)

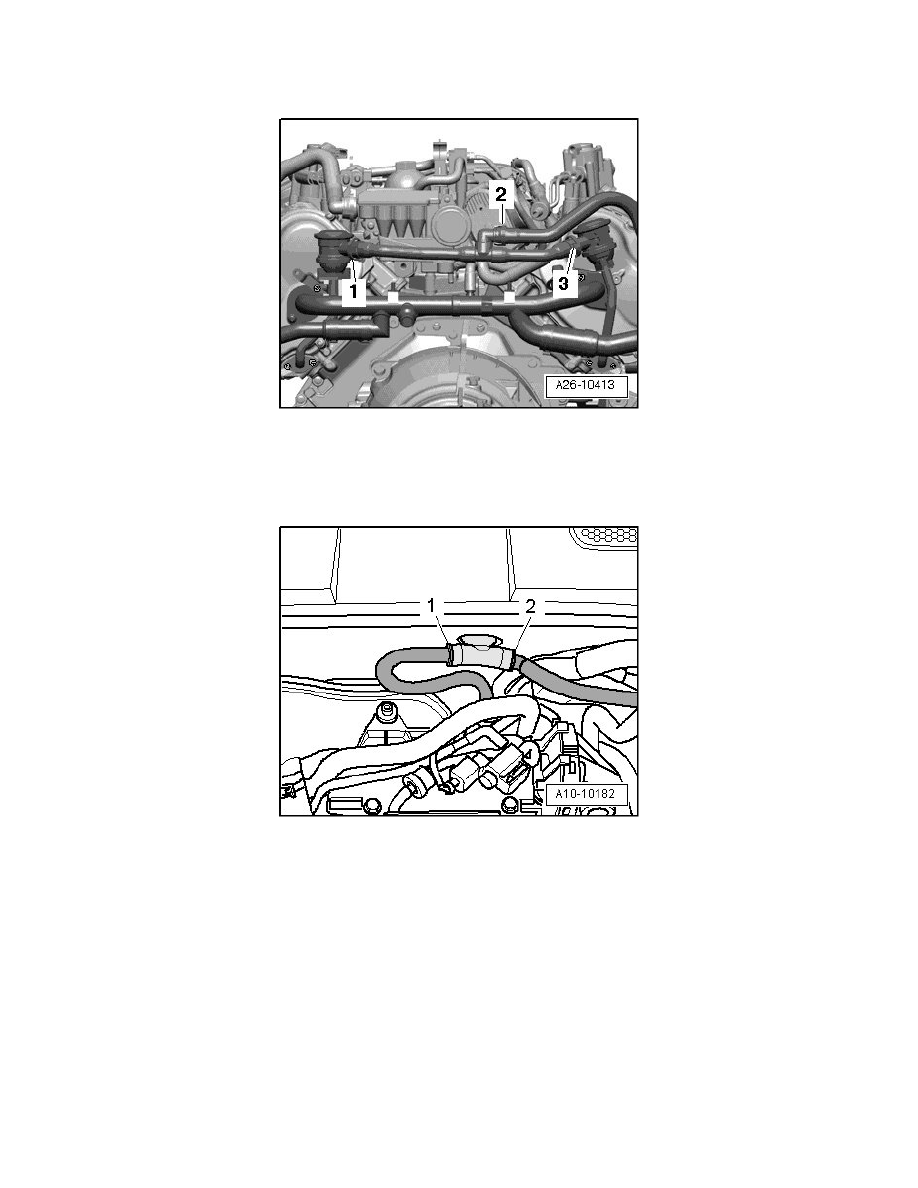

‹› Disregard - arrow -.
-
Remove air guide hose - 1 -.
‹› Ignore - 2 and 3 -.
‹› To improve clarity, the removed engine is shown from the rear.
-
Remove vacuum hose - 2 - from T-piece on bulkhead.
‹› Ignore - 1 -.
-
Remove crankcase ventilation hose - 1 and 2 -.
