A6 Quattro Sedan V8-4.2L (BVJ) (2007)

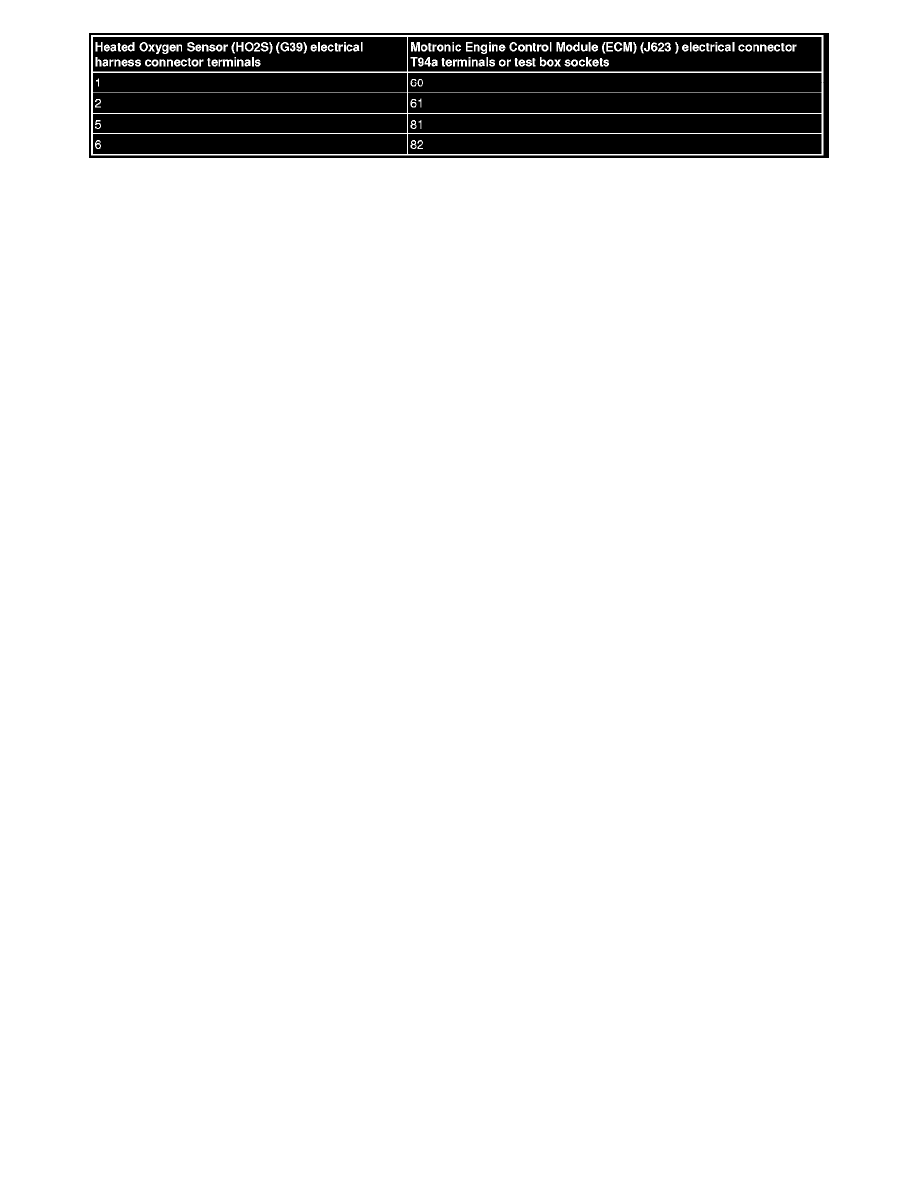

Specified value: 1.5 ohms Max.
If the specification was not obtained:
-
Check the wiring for a short circuit to each other, Battery (+), and Ground (GND).
-
Check the electrical harness connector for damage, corrosion, lose or broken terminals.
-
If necessary, repair the faulty wiring connection.
If no malfunction is found in the wiring:
-
Replace the Motronic Engine Control Module (ECM) (J623). Refer to => [ Engine Control Module, Removing and Installing ] See: Engine
Control Module/Service and Repair/Engine Control Module.
Assembly is performed in the reverse order of removal.
Final procedures
After repair work, the following work steps must be performed in the following sequence:
1. Check the DTC memory. Refer to => [ Diagnostic Mode 03 - Read DTC Memory ] See: Testing and Inspection/Scan Tool Testing and
Procedures/Diagnostic Modes 01 - 09/Diagnostic Mode 03 - Read DTC Memory.
2. If necessary, erase the DTC memory. Refer to => [ Diagnostic Mode 04 - Erase DTC Memory ] See: Testing and Inspection/Scan Tool Testing
and Procedures/Diagnostic Modes 01 - 09/Diagnostic Mode 04 - Erase DTC Memory.
3. If the DTC memory was erased, generate readiness code. Refer to => [ Readiness Code ] See: Testing and Inspection/Monitors, Trips, Drive
Cycles and Readiness Codes.
-
End of diagnosis.
Heated Oxygen Sensor 2
‹› Use only gold-plated terminals when servicing terminals in the electrical harness connectors of the Heated Oxygen Sensor (HO2S) 2 (G108).
Special tools, testers and auxiliary items required
‹› Multimeter.
‹› Wiring diagram.
Test requirements
‹› The Motronic Engine Control Module (ECM) (J623) fuses OK.
‹› The Oxygen Sensor (O2S) 2 Heater (Z28) before catalytic converter OK.
‹› Battery voltage at least 12.5 volts.
‹› All electrical consumers such as, lights and rear window defroster, switched off.
‹› A/C switched off.
‹› Ground (GND) connections between engine/transmission/chassis OK.
‹› Exhaust system between catalytic converter and cylinder head properly sealed.
