A6 Quattro Sedan V8-4.2L (BVJ) (2007)

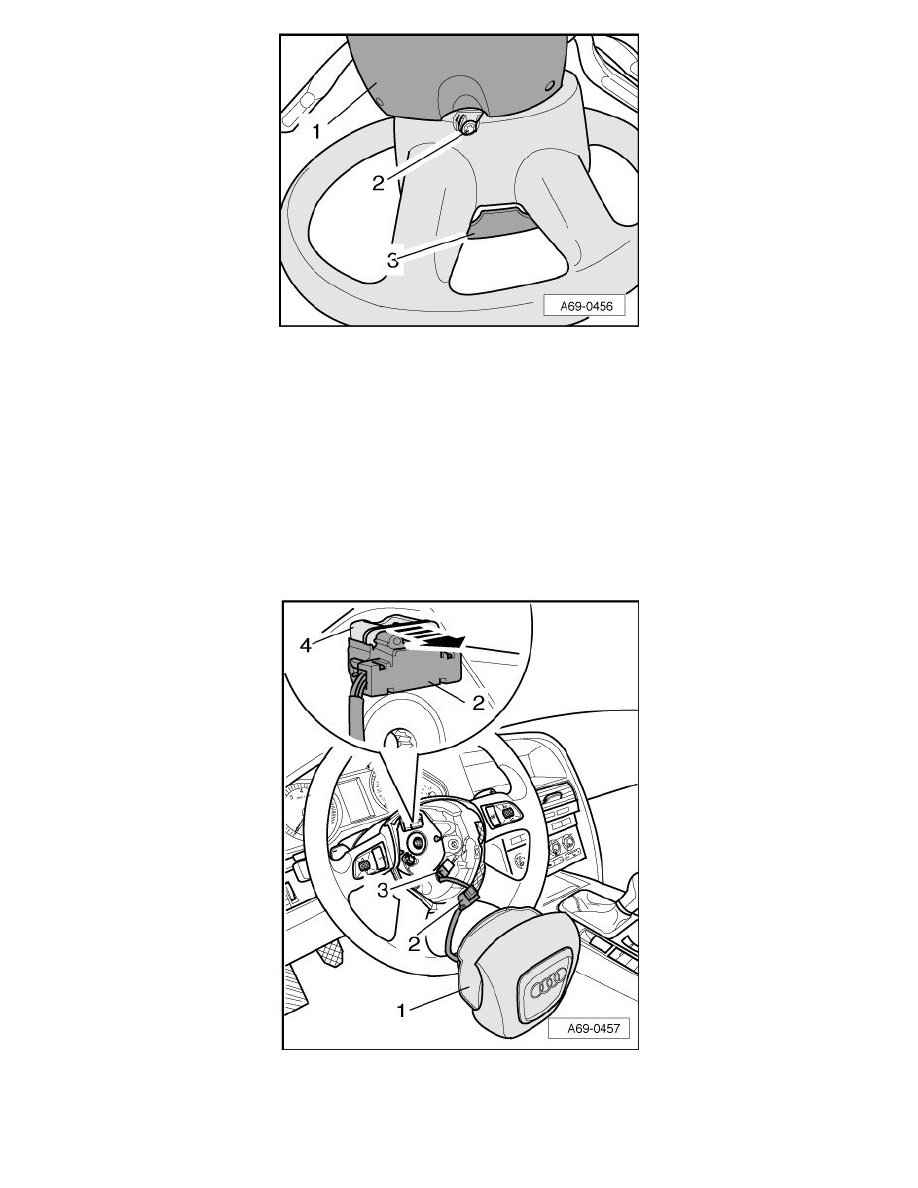

‹› The airbag unit securing screw - 3 - must be opposite the cut-out in bottom of steering column trim - 1 -.
-
Remove the bolt - 2 -.
-
Turn steering approx. 160° left and remove left airbag unit screw.
-
Bring steering wheel to center position (wheels straight).
CAUTION!
Before disconnecting connectors, technician must discharge electrostatic energy. To do this, briefly touch door lock, for example.
-
Pull driver's airbag unit from steering wheel a bit.
-
Push connector lock - 4 - to stop - arrow -; this disconnects electrical connection - 2 - and it can be removed.
-
Remove airbag unit - 1 - from steering wheel.
-
If applicable, disconnect electrical connection - 3 -.
-
Place airbag unit so padding faces upward.
