A6 Quattro Sedan V8-4.2L (BVJ) (2007)

Page 2
background image

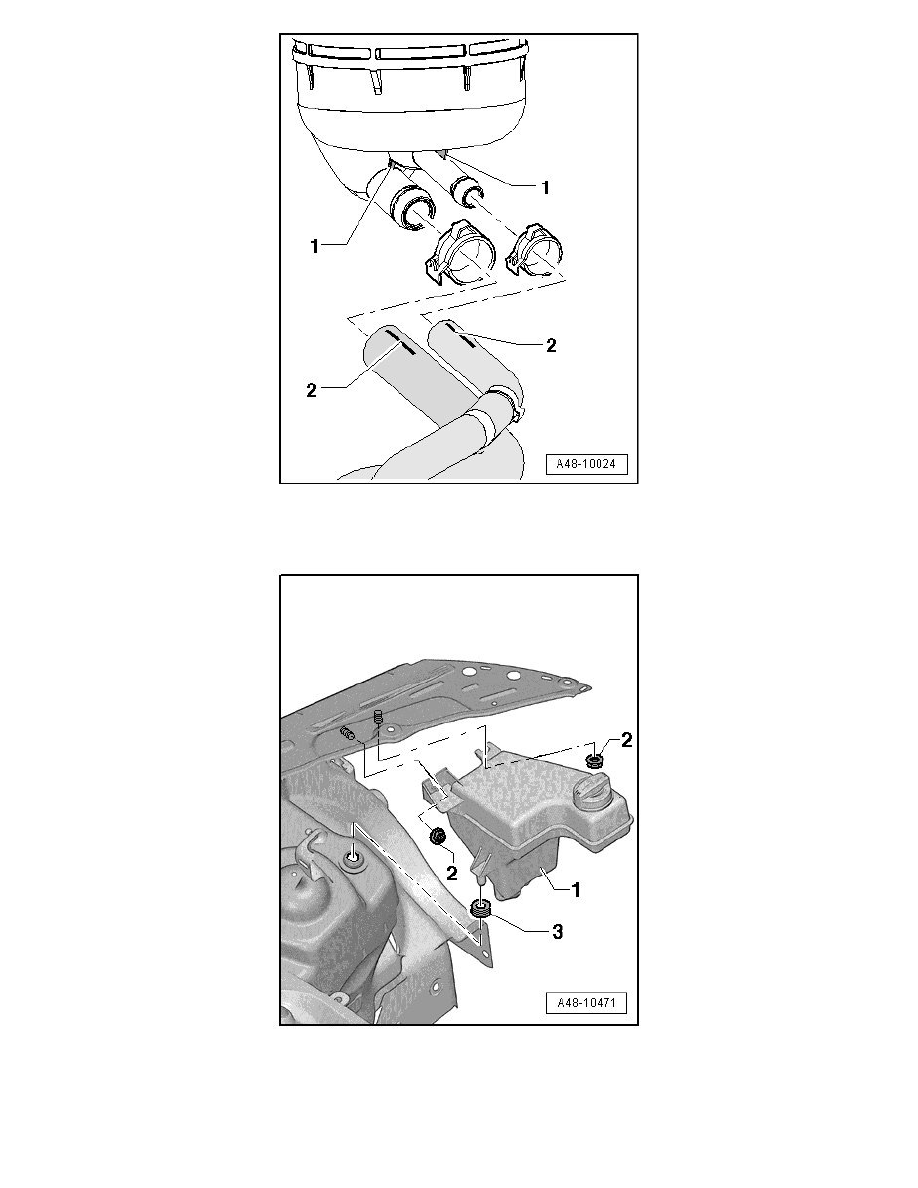

The markings - 2 - on the hoses must align with the bars - 1 - on the reservoir.

Installation location: Reservoir; applies to 10-cylinder TFSI

Reservoir - 1 -

- 2 - nut, 8 Nm

Grommet - 3 -
