A6 Quattro Sedan V8-4.2L (BVJ) (2007)
-

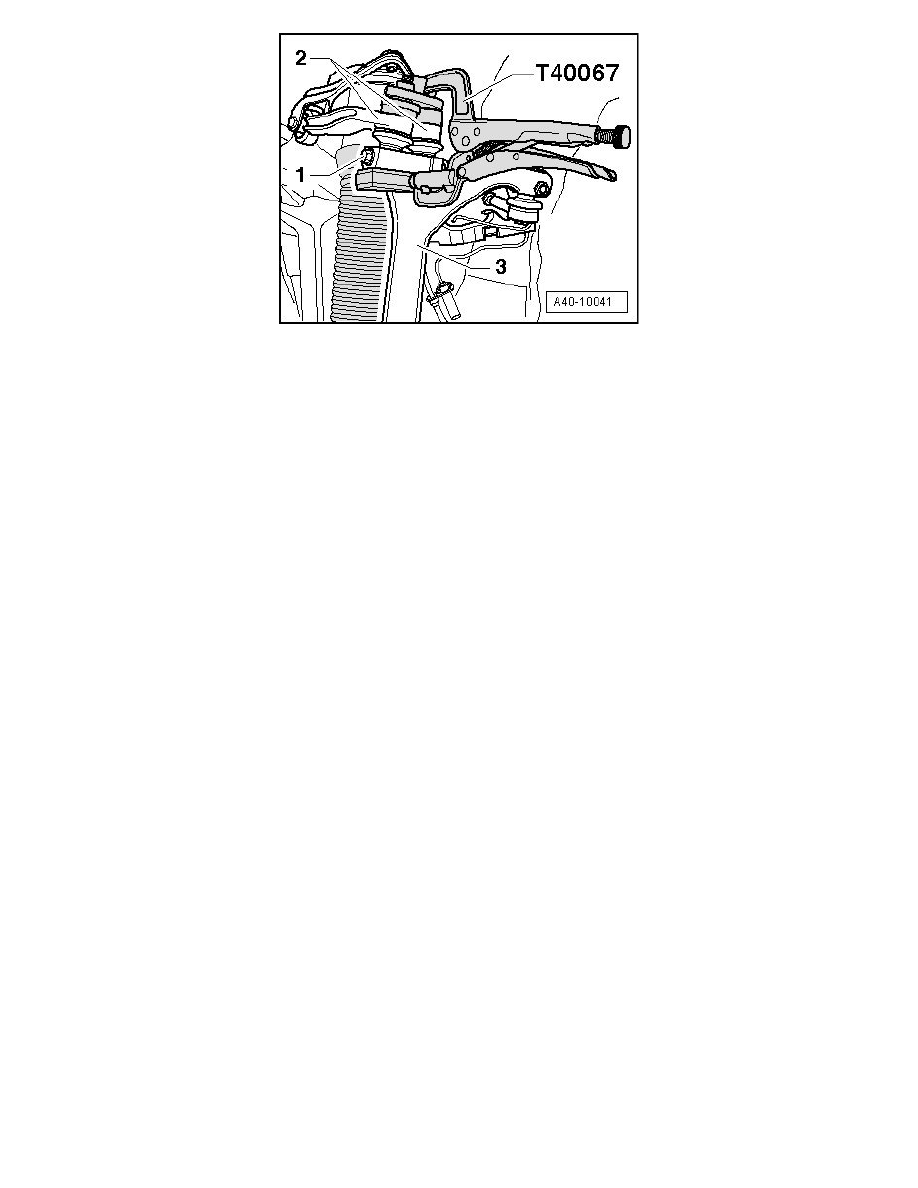

Tighten bolt - 1 -.
‹› Bonded rubber bushings can only be turned to a limited extent. Only tighten suspension bolts when vehicle is in the control position.
‹› For vehicles with air spring suspension, lift wheel suspension in control position. Refer to => [ Wheel Bearing, with Air Suspension, Lifting to
Curb Weight Position ] See: Wheel Bearing/Service and Repair/Procedures/Front Suspension/Wheel Bearing, with Air Suspension, Lifting to
Curb Weight Position.
-
Install wheel.
-
Place vehicle on wheels. Refer to => [ Positioning Vehicle on Hoist and Wheels ] See: Service and Repair/Procedures/Positioning Vehicle on
Hoist and Wheels.
-
Tighten wheel.
-
Re-adapt control position. Refer to => [ Control Position, Programming ] See: Testing and Inspection/Programming and Relearning/Control
Position, Programming.
-
Install the plenum chamber cover.
Tightening specifications. Refer to => [ Air Suspension Strut, Mounting Bracket and Upper Control Arm Assembly
Overview ] See: Air Suspension Strut, Mounting Bracket and Upper Control Arm Assembly Overview
