Flex Plate: Service and Repair

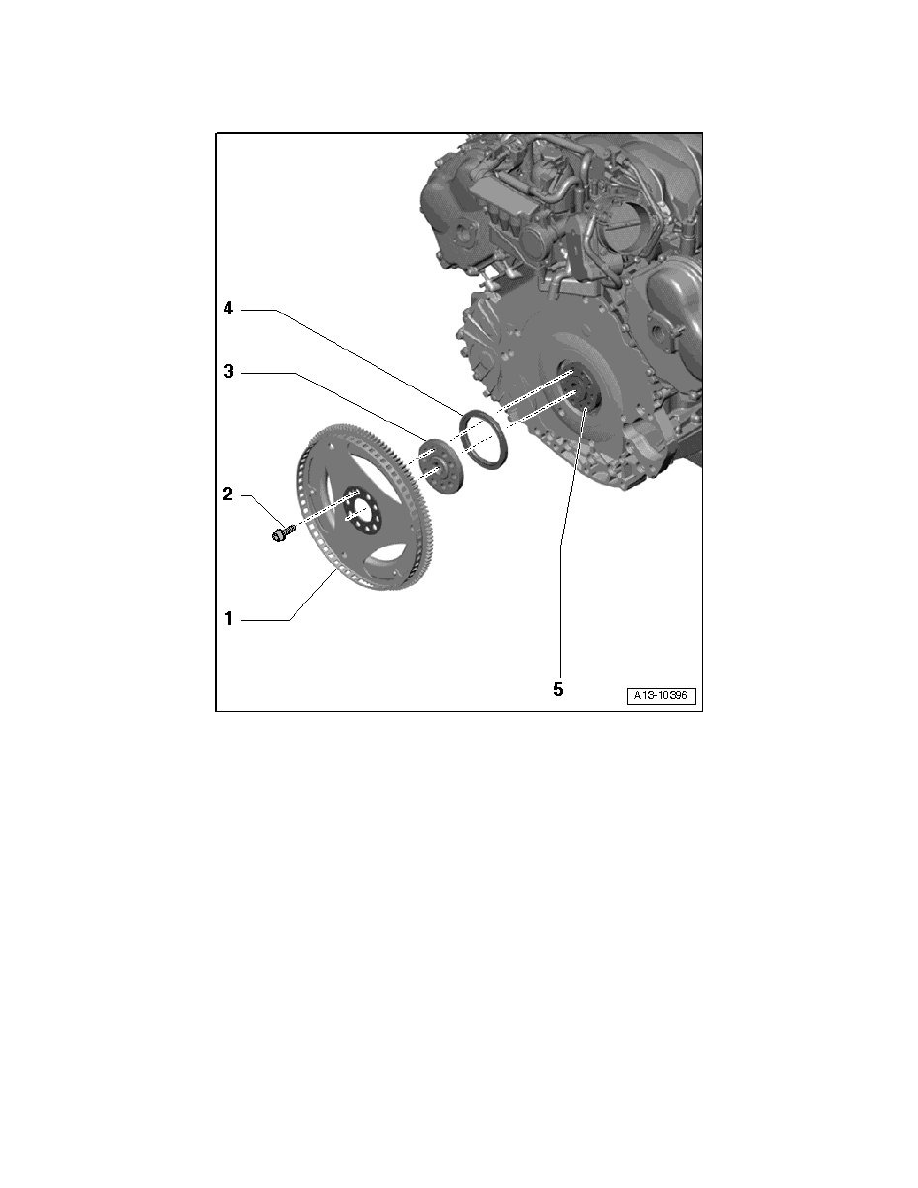

Drive Plate Assembly Overview

Drive Plate Assembly Overview

1

Drive plate

‹› Removing and installing => [ Drive Plate ] See: Drive Plate

‹› Mark for re-installation

2

Bolt

‹› Replace

‹› 60 Nm plus an additional 90° (1/4 turn).

3

Shim

‹› Mark for re-installation

4

Transmission-side crankshaft sealing ring

‹› Replacing => [ Crankshaft Sealing Ring, Transmission Side, Replacing ] See: Engine, Cooling and Exhaust/Engine/Seals and

Gaskets/Crankshaft Main Bearing Seal/Service and Repair/Crankshaft Sealing Ring, Transmission Side, Replacing.

5

Crankshaft
