A6 Quattro Wagon V6-3.2L (BKH) (2006)
Installing
-
Clean bonding area at center console mounting.
-
Connect harness connector first.
The Bluetooth Antenna (R152) is already supplied with adhesive tape.
-
Remove protective coating from adhesive tape on Bluetooth Antenna (R152).
-

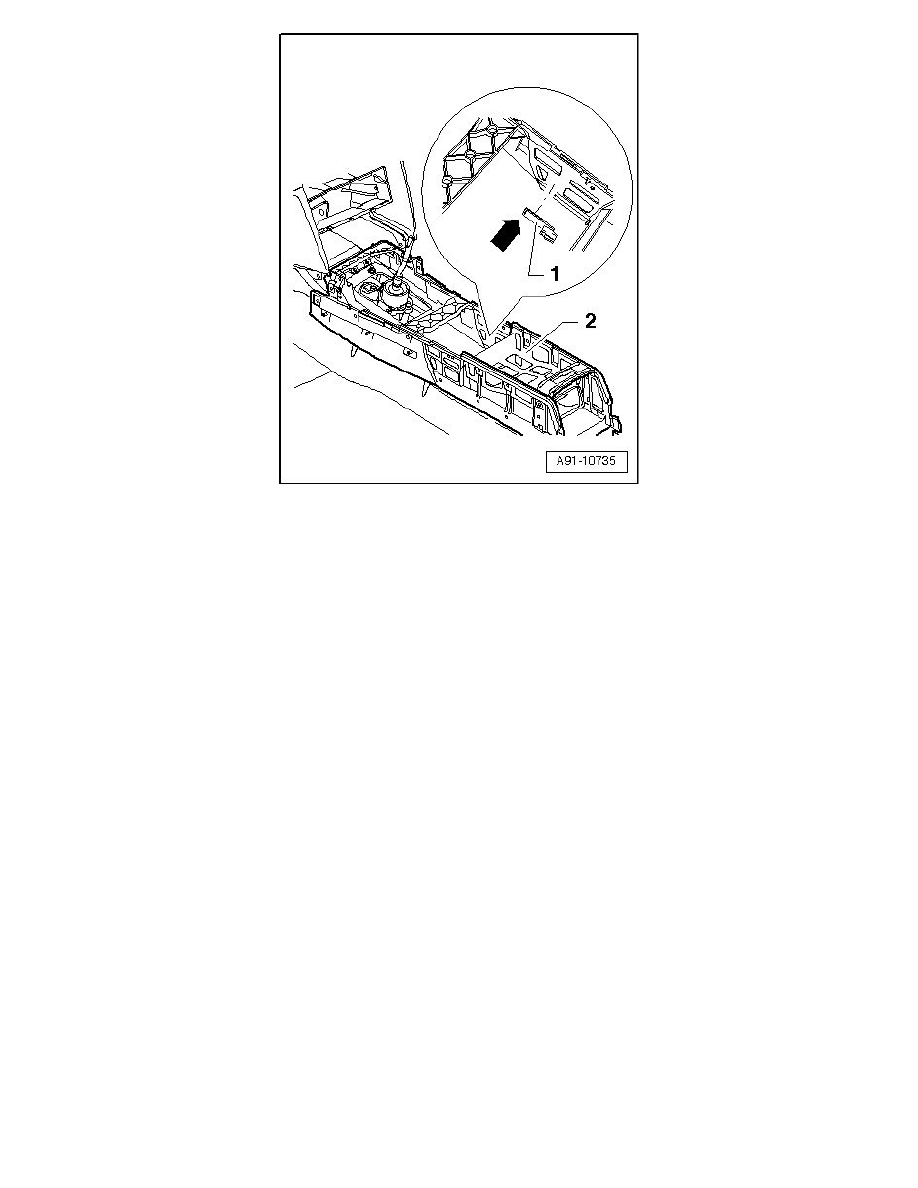

Press Bluetooth Antenna (R152) - 1 - (approx. 10 N, 3-5 sec.) in - direction of arrow - onto adhesive area.
