A6 Quattro Wagon V6-3.2L (BKH) (2006)
Antenna - Keyless Entry: Service and Repair
Keyless Access Authorization Antenna Reader J723, Removing and Installing
Keyless Access Authorization Antenna Reader J723, Removing And Installing
Removing
-
Switch ignition off and remove ignition key.
-
Remove glove compartment
-

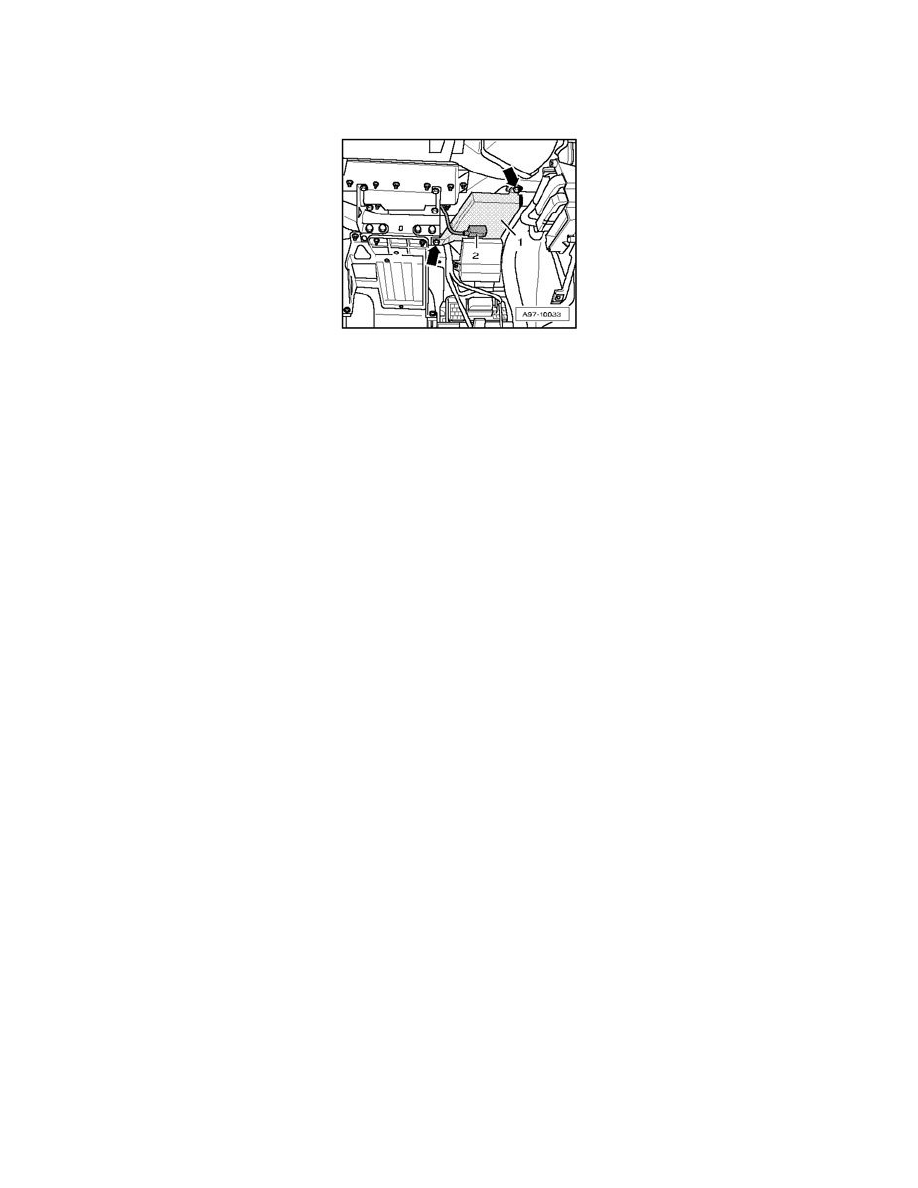

Remove bolts - arrows -.
-
Disconnect electrical harness connector - 2 -.
-
Remove Keyless Access Authorization Antenna Reader J723 - item 1 -.
Installing
Installation is performed in reverse order of removal, noting the following:
-
Install glove compartment.
Tightening torque
Keyless Access Authorization Antenna Reader J723 to central tube: 3 Nm
