A6 Quattro Wagon V6-3.2L (BKH) (2006)
/Page-6492001.png)
Tow Sensor: Service and Repair
Towing Recognition Control Module, Station Wagon
Removing
-
If the control module was replaced, select the "Replace" function for the respective control module in "Guided Fault Finding" or " Guided
Functions" Vehicle diagnosis, testing and information system VAS 5051.
-
Select the function or path:
-
Follow further instructions on display of (VAS 5051B).
-
Remove right luggage compartment side trim cover.
Vehicles with car jack bracket:
-
Remove car jack from bracket.
-

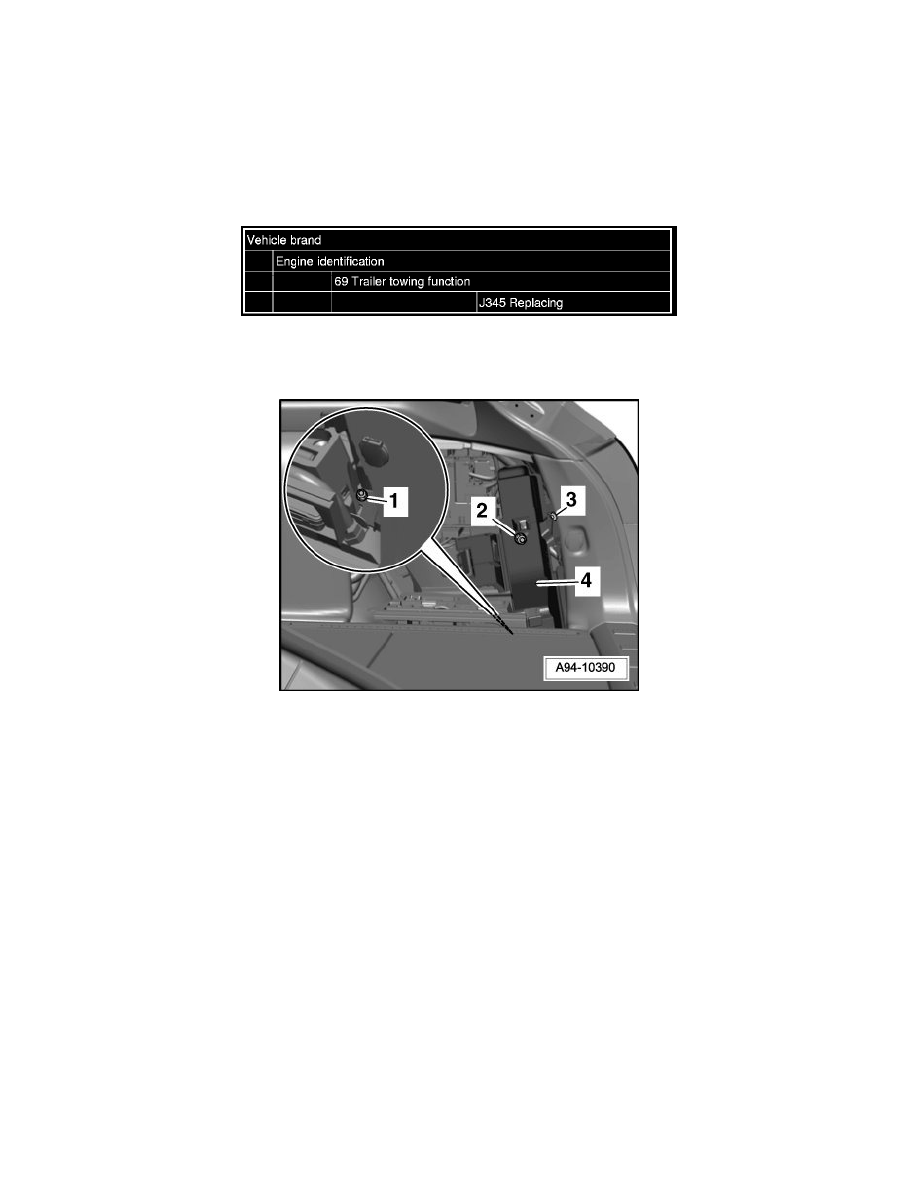

Remove nuts - 1 - and - 2 - and bolt - 3 -.
-
Remove car jack bracket.
All:
