Cellular Phone Transceiver|Diagrams|Page 18090 > < Cellular Phone Transceiver|Diagrams

A6 Quattro Wagon V6-3.2L (BKH) (2006)

Page 2
background image

50

Ser Tx (-) to Telephone Baseplate (R126)

51

Ser Rx (+) from Telephone Baseplate (R126)

52

Ser Rx (-) from Telephone Baseplate (R126)

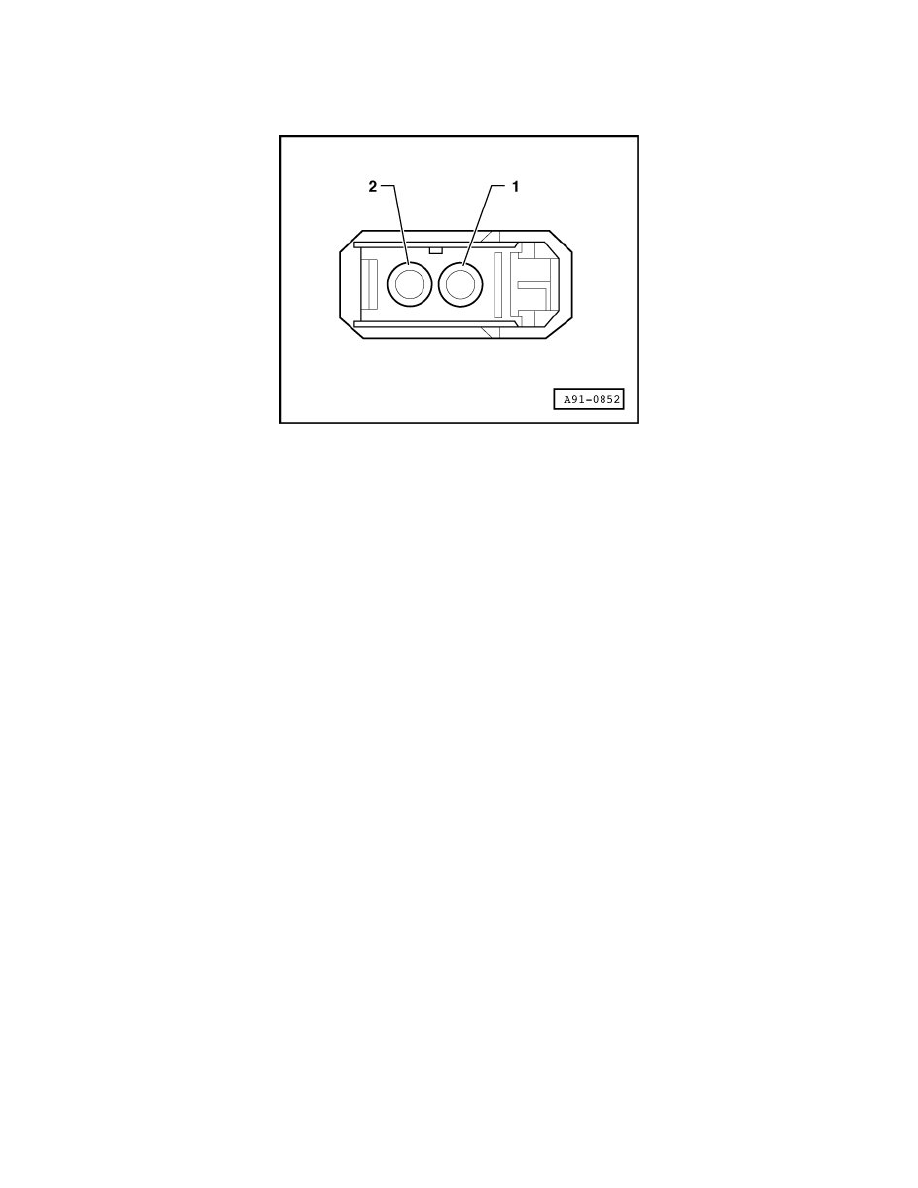

B - MOST Bus

1

Input

2

Output

Cellular Phone Transceiver|Diagrams|Page 18090 > < Cellular Phone Transceiver|Diagrams
