A6 Quattro Wagon V6-3.2L (BKH) (2006)
‹› Distance to rear wheel axle 1.47 m - 1.90 m - dimension A -
Setting up measuring device
-

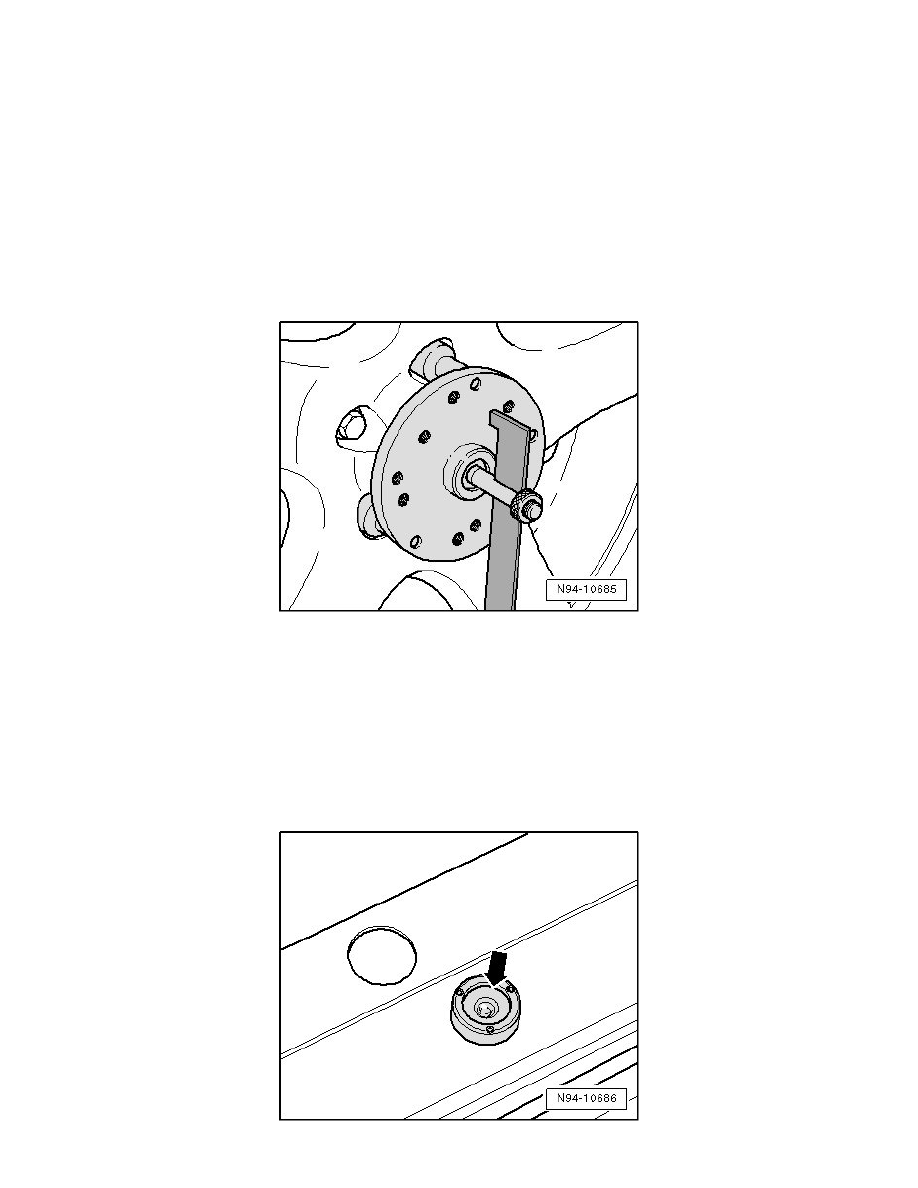

Check which hole circle the rims have.
-
Equip wheel pick-ups appropriately.
-
To do so, secure three wheel bolt adapters in the hole circle to each wheel pick-up.
-
Attach paddles to both wheel pick-ups and secure them with clamping screw.
-
Set the wheel pick-ups on to wheel mounting bolts at the rear wheels.
When doing this, the wheel pick-ups are positioned by the " O-rings" in the adapters and held in place.
‹› Attach wheel pick-ups onto wheels so that any installed "anti-theft " wheel mounting bolts are not connected to the wheel pick-ups.
-
Adjust paddle with aid of lock screws so that they move freely just above the floor.
Ensure paddles move easily.
-
Position calibration platform behind vehicle at a distance of 1.47 m -1.90 m from rear wheels, as depicted in overview - dimension A -.
-
Bring calibration platform to a horizontal position.
-
Twist plastic feet under calibration platform so that air bubble in spirit level is located exactly in the center of the indicator - arrow -.
