A6 Quattro Wagon V6-3.2L (BKH) (2006)

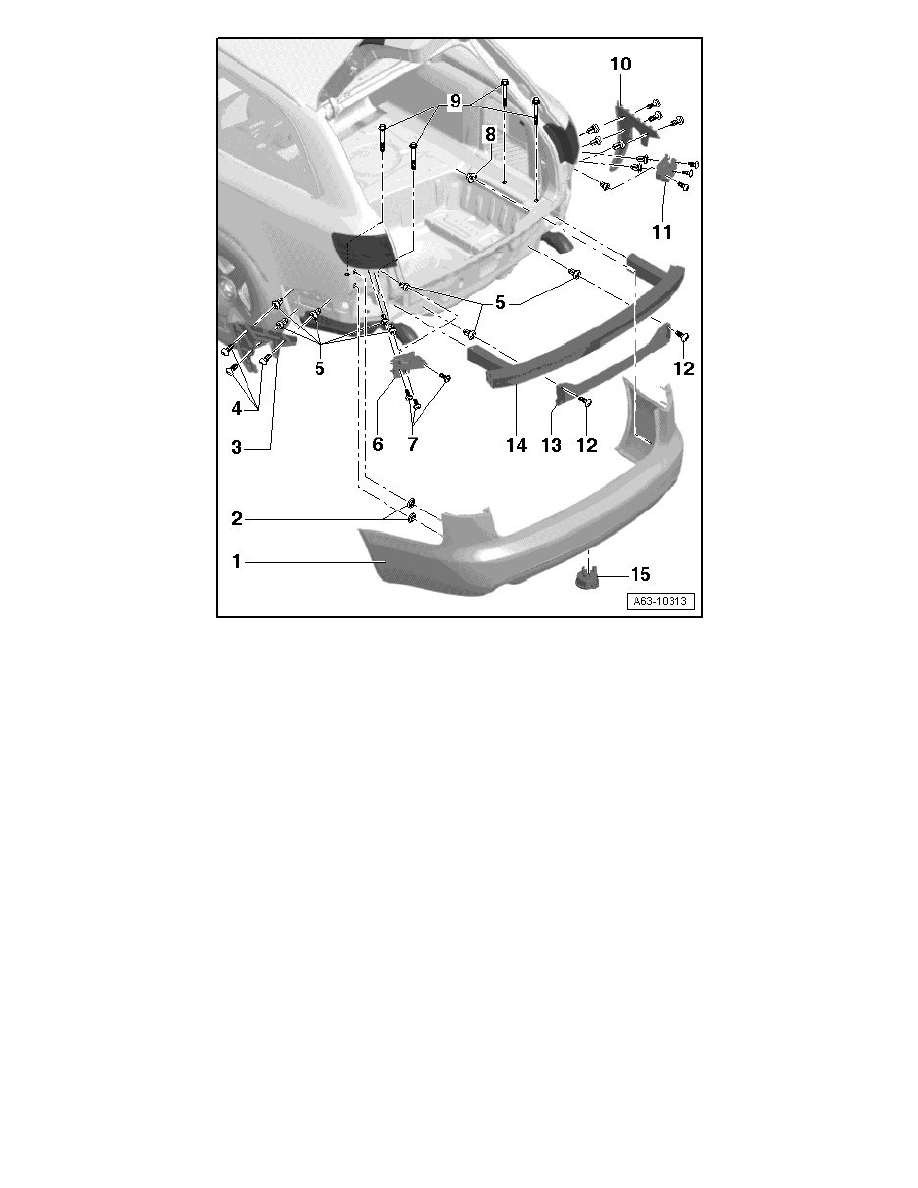

1
Bumper
‹› Removing
‹› Remove luggage compartment side trim.
‹› Disconnect the parking aid sensor at control module (under tail light, left side) connectors if necessary.
‹› Remove special nuts -- (accessible from luggage compartment).
‹› Loosen the wheel housing liners near the cover
‹› Remove left and right screws on guide piece. Refer to => [ Guide Piece ].
‹› Unclip side-pieces on sides of guide piece.
‹› Remove cover.
2
Grommet
‹› Slide cover onto threaded pins before assembling.
3
Left adjusting piece
4
Bolt
‹› 1 Nm
5
Clip
