A6 Quattro Wagon V6-3.2L (BKH) (2006)
Front Door Latch: Service and Repair
Door Lock, Removing
Door Lock, Removing

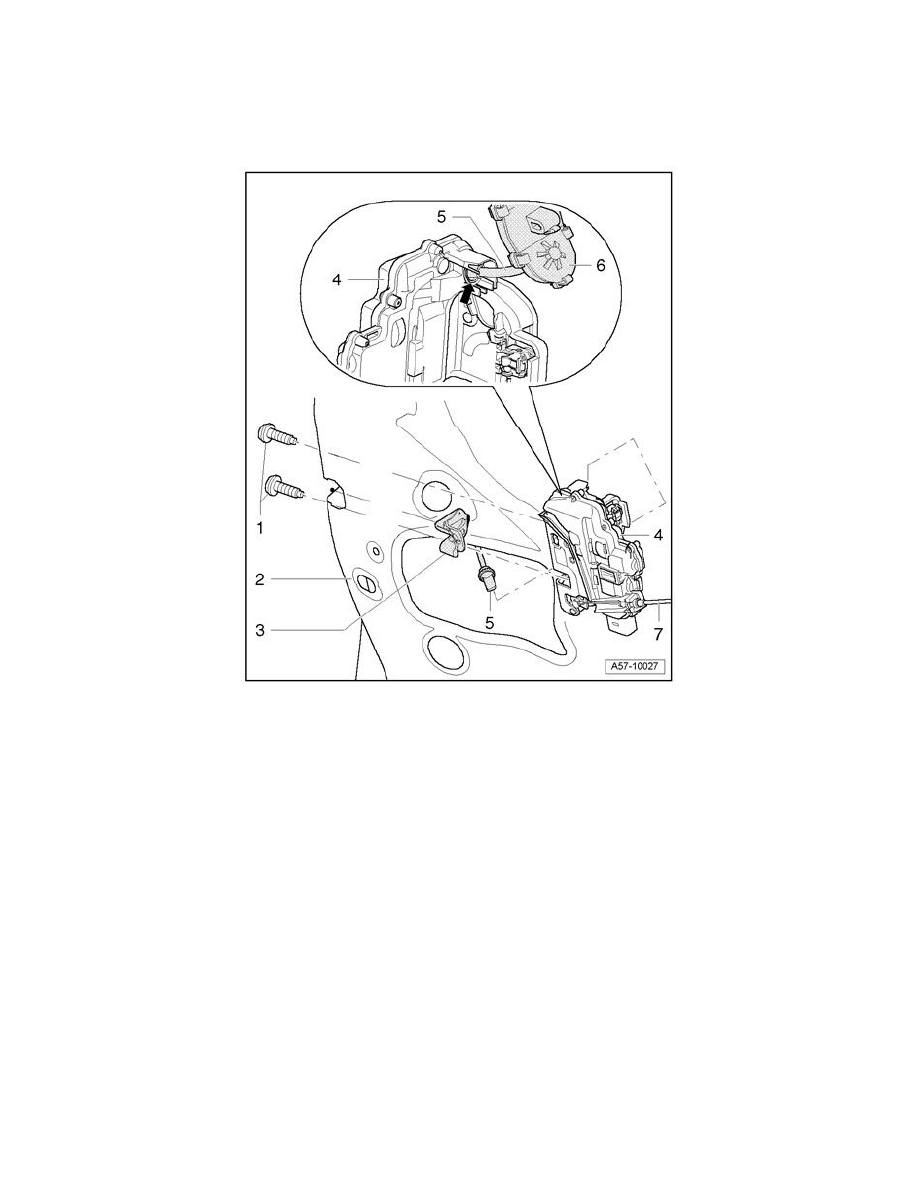

Assembly Overview
1
-
Socket head bolt M 8
-
20 Nm
2
-
Front door
3
-
Backing
4
-
Door lock
-
Door trim removed.
-
Window frame and window regulator removed.
-
On drivers side, you must first remove cover.
-
Disconnect electrical harness connector at door lock.
-
Release catch on release lever from door lock and unclip operating rod.
-
Unscrew multi-point bolts - 1 - and remove door lock.
5
-
Shaft
-
To install, insert so-called shaft "Paddle" in nut on door lock - arrow - as shown.
6
-
Transfer module
-
Clipped in door handle
-
Only installed on drivers side.
7
-
Inside door release mechanism release
-
To install, first insert vertically into release lever as shown in the magnified area of illustration, then swivel 90 degrees and clip into door
lock to secure.
