A6 Quattro Wagon V6-3.2L (BKH) (2006)

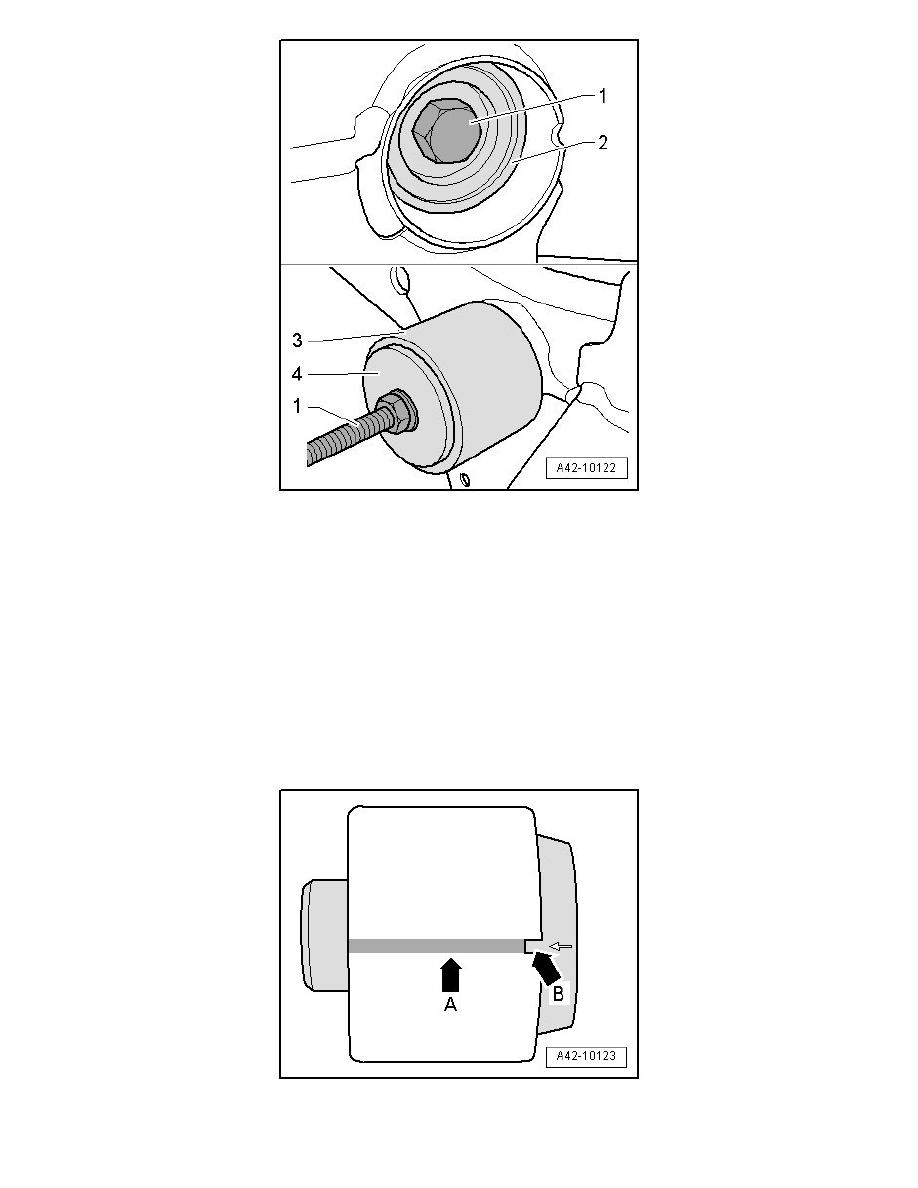

1. Spindle (3346/2)
2. Thrust piece (3348/2). Insert in subframe with smooth side toward bearing.
3. Tube (3259)
4. Washer (T40032/2)
-
Pull bearing out of subframe.
Installing
Installation is in reverse order of removal. Observe the following when doing so:
-
Apply continuous marking - arrow A - at groove - arrow B -.
‹› Marking is needed to align bearing with subframe.
