A6 Quattro Wagon V6-3.2L (BKH) (2006)
/Page-7416002.png)
-
Remove front ashtray insert.
-
Remove bolts - 1 - and - 2 -.
-
Release ashtray - 3 - with a screwdriver - arrow - by positioning screw driver on opening - 4 -.
-
Remove front ashtray housing.
-
If applicable, disconnect electrical connection.
-

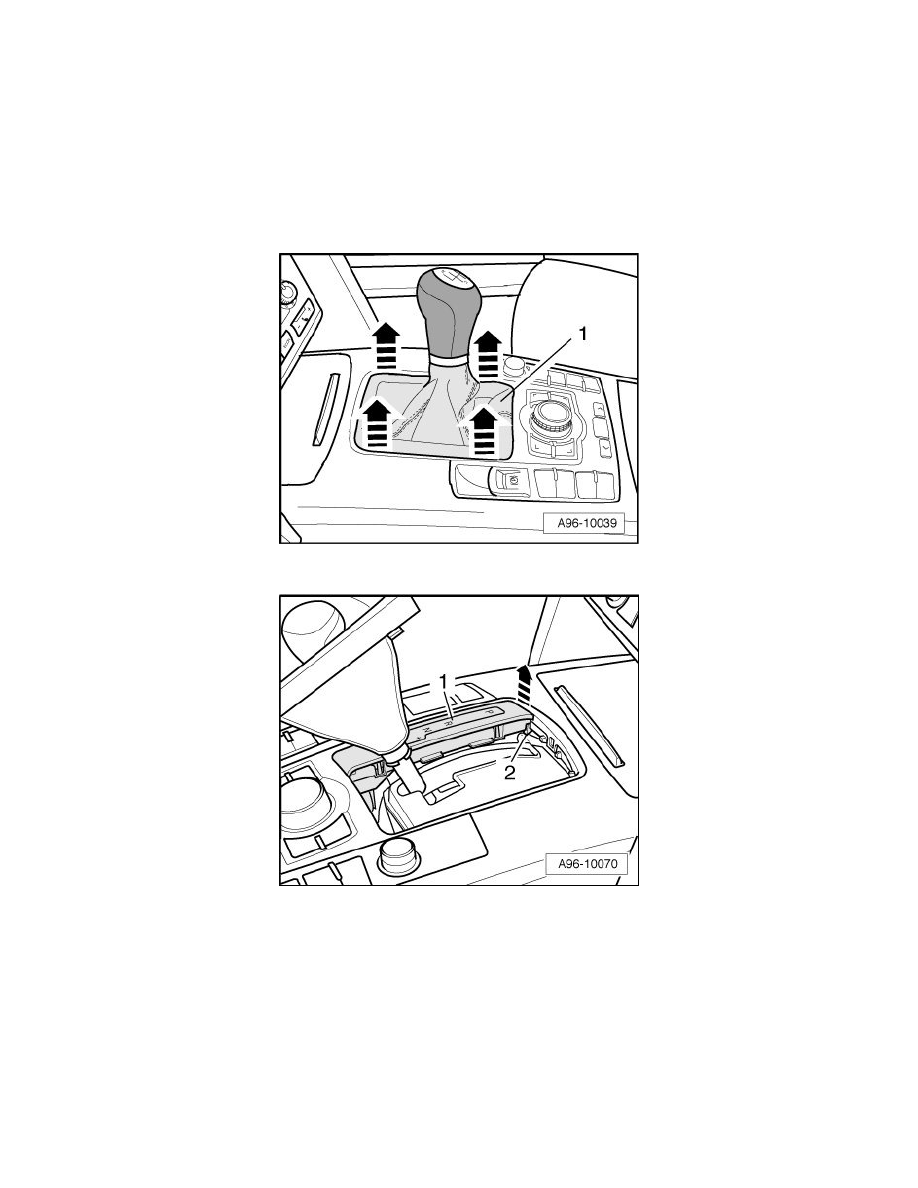

Unclip shift or selector lever boot - 1 - on both sides and pull up to remove - arrows -.
Vehicles with automatic transmission:
-
Release retaining spring - 2 - and remove selector chart - 1 - - arrow -.
-
Disconnect electrical connector.
All:
