A6 Quattro Wagon V6-3.2L (BKH) (2006)

Page 1
background image

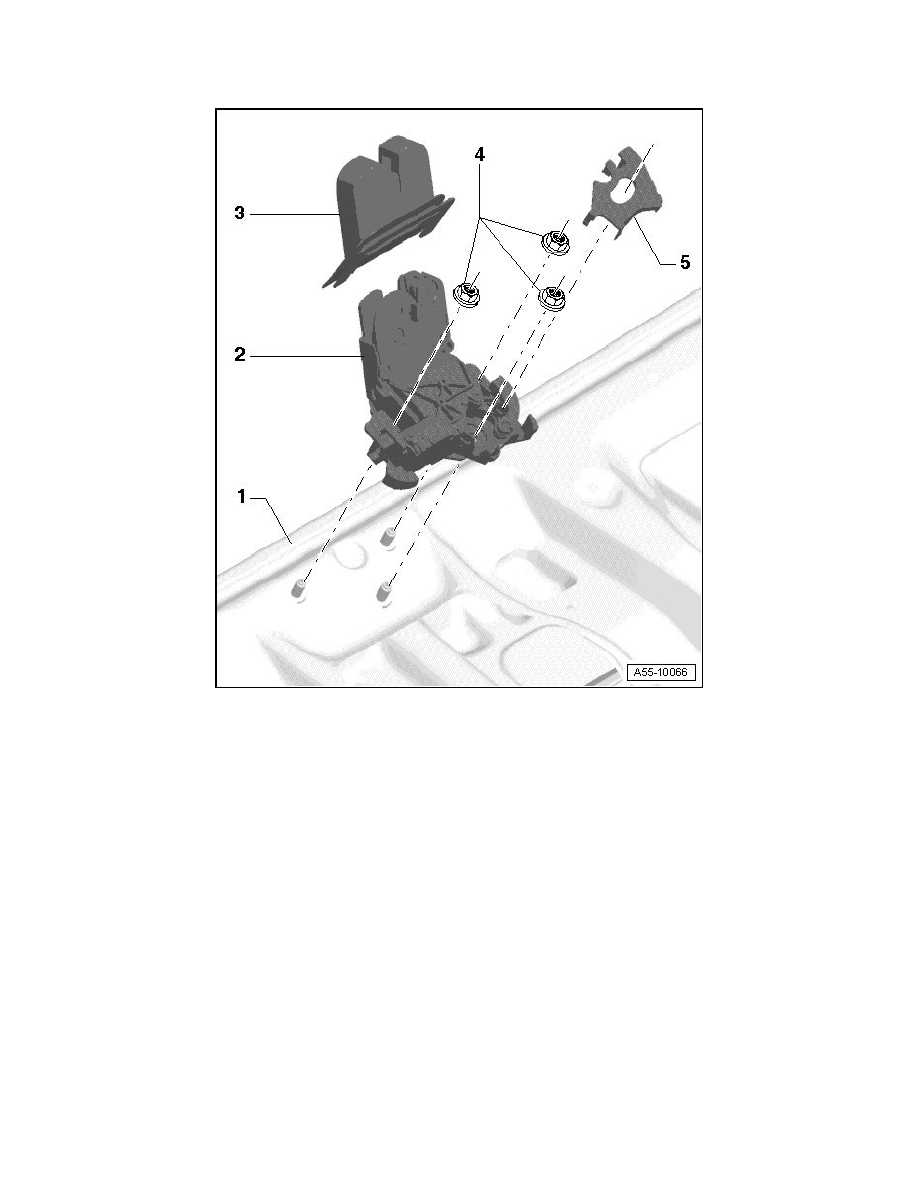

Trunk / Liftgate Lock: Service and Repair

Rear Lid Lock

1

Rear Lid

2

Hood lock

3

Cover for lid lock

‹› When assembling, cover must engage audibly into lid lock.

4

Hex nuts

‹› 21 Nm

5

Anti-theft cover

‹› When assembling, cover must engage cleanly into lid lock.
