A6 Quattro Wagon V6-3.2L (BKH) (2006)
/Page-7832001.png)
Head Rest: Removal and Replacement
Front Seat Pan Covers and Upholstery
Cover And Upholstery For Headrests With Slide In Locking Mechanism, Removing And Installing
Removal
-
Remove the headrests.
-

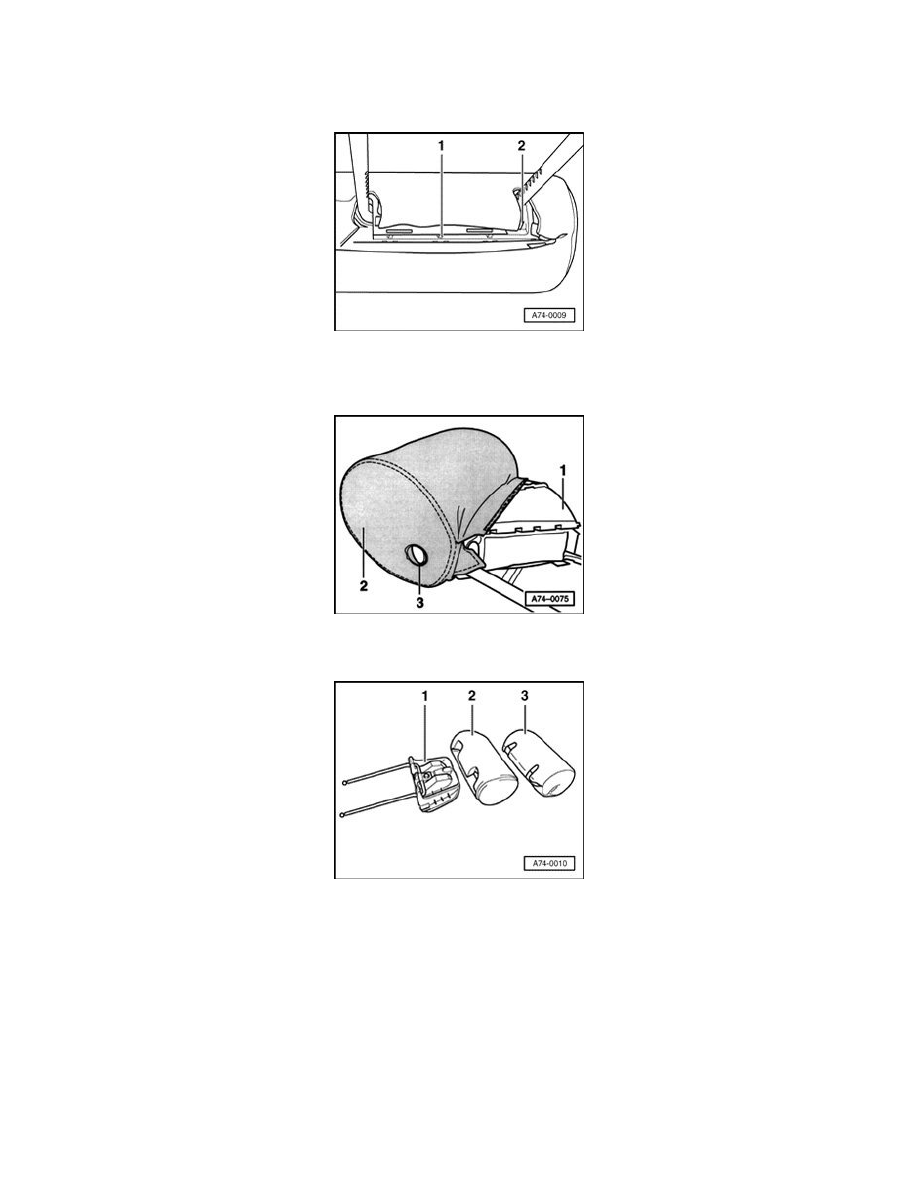

Disengage fastening strips - 2 - by prying them out of guide channel - 1 - with a screwdriver.
-
Lift cover over button collar - 3 - using a screwdriver.
-
Remove head restraint mount - 1 - from upholstery with cover - 2 -. Begin on side opposite to knob - 3 -.
-
Remove padding - 2 - from cover - 3 -.
Installing
