A6 Quattro Wagon V6-3.2L (BKH) (2006)
Seat Cover: Overhaul
Rear Seat Backrest Cover and Upholstery, Fixed
Rear Seat Backrest Cover and Upholstery, Fixed
Special tools, testers and auxiliary items required
‹› Upholstery clip pliers (V.A.G 1634)
1

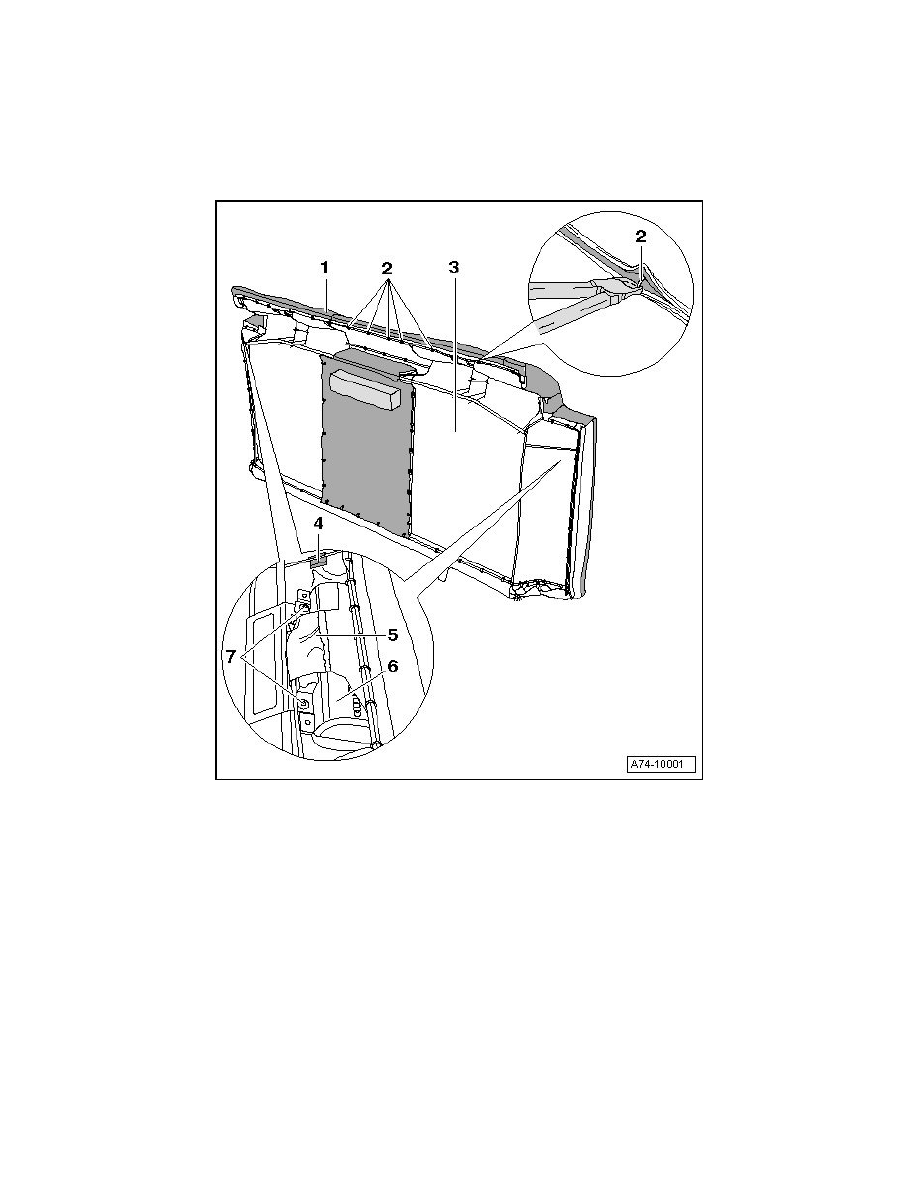

Cover
‹› Removing
-
Remove seat bench => [ Bench Seat ] See: Service and Repair/Removal and Replacement/Rear Seats.
-
Remove the backrest => [ Rear Seat Backrest, Fixed ] See: Service and Repair/Removal and Replacement/Rear Seats.
-
Remove center armrest=> [ Center Armrest, Fixed Rear Seat Backrest ] See: Service and Repair/Removal and Replacement/Rear Seats.
-
Cut upholstery clips - 2 -.
On vehicles with side airbag:
-
Pry fastening strip - 4 - out with a screwdriver.
-
Remove bolts - 7 - (Qty. 2).
-
Pull side airbag - 6 - downward out of protective cover - 5 -.
