A6 Quattro Wagon V6-3.2L (BKH) (2006)
-
Use trim removal wedge 3409 - 2 - for this.
-
Pos.- 1 -piston resetting tool (T10145)
‹› When removing, make sure that surface of cylinder is not damaged.
Installing
-
The surface of the piston and seal must only be cleaned with mineral spirits and then dried.
-
Thinly coat piston and seal with assembly paste before inserting.
-
Insert inner seal in brake caliper groove using trim removal wedge 3409.
-

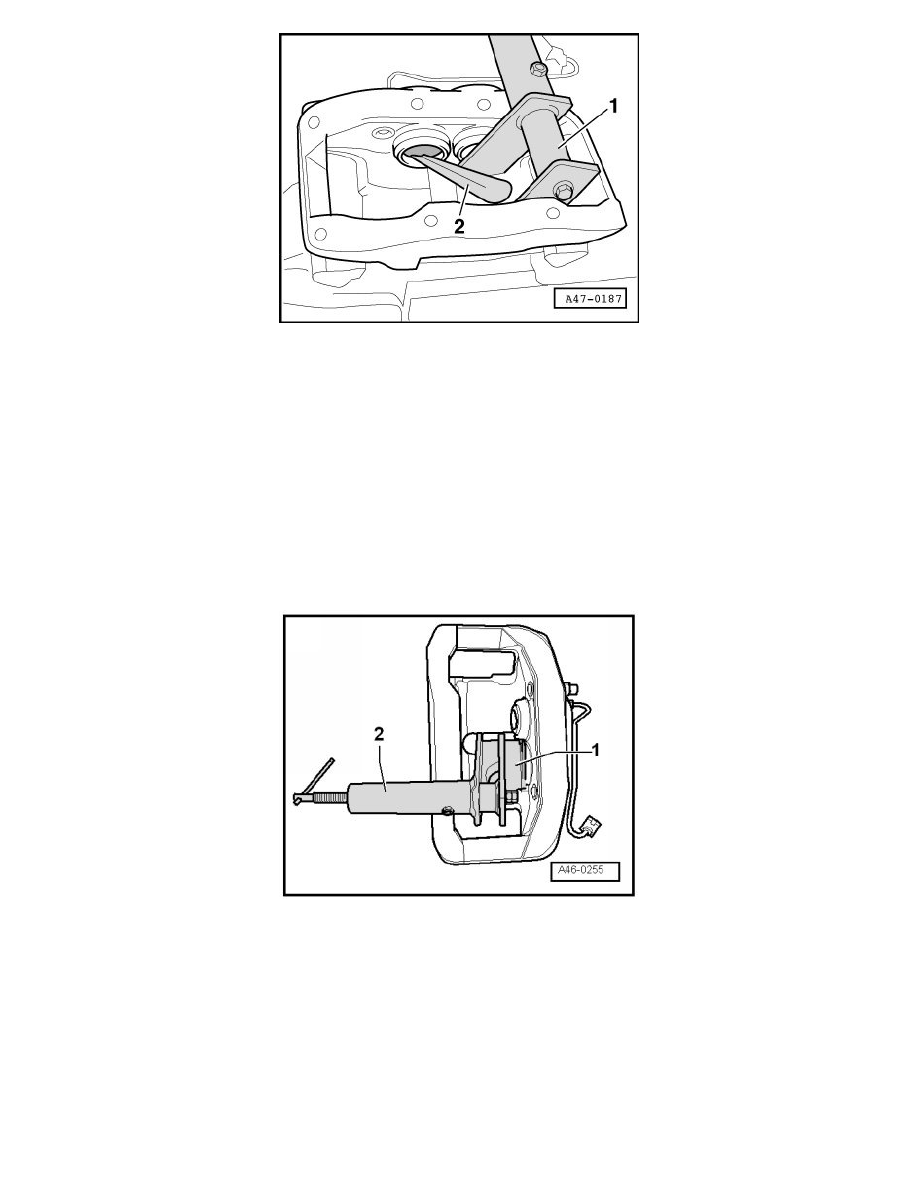

Press in the protective cap using special tool - 1 - and - 2 -.
-
Item - 1 - assembly tool for protective caps (T10146/5)
-
Pos.- 2 -piston resetting tool (T10145)
Use protective backings
-
Press the protective cap onto the brake caliper housing so that it contacts the brake caliper housing all around - arrow -.
