A6 Quattro Wagon V6-3.2L (BKH) (2006)
/Page-4302001.png)
Vacuum Pump: Service and Repair

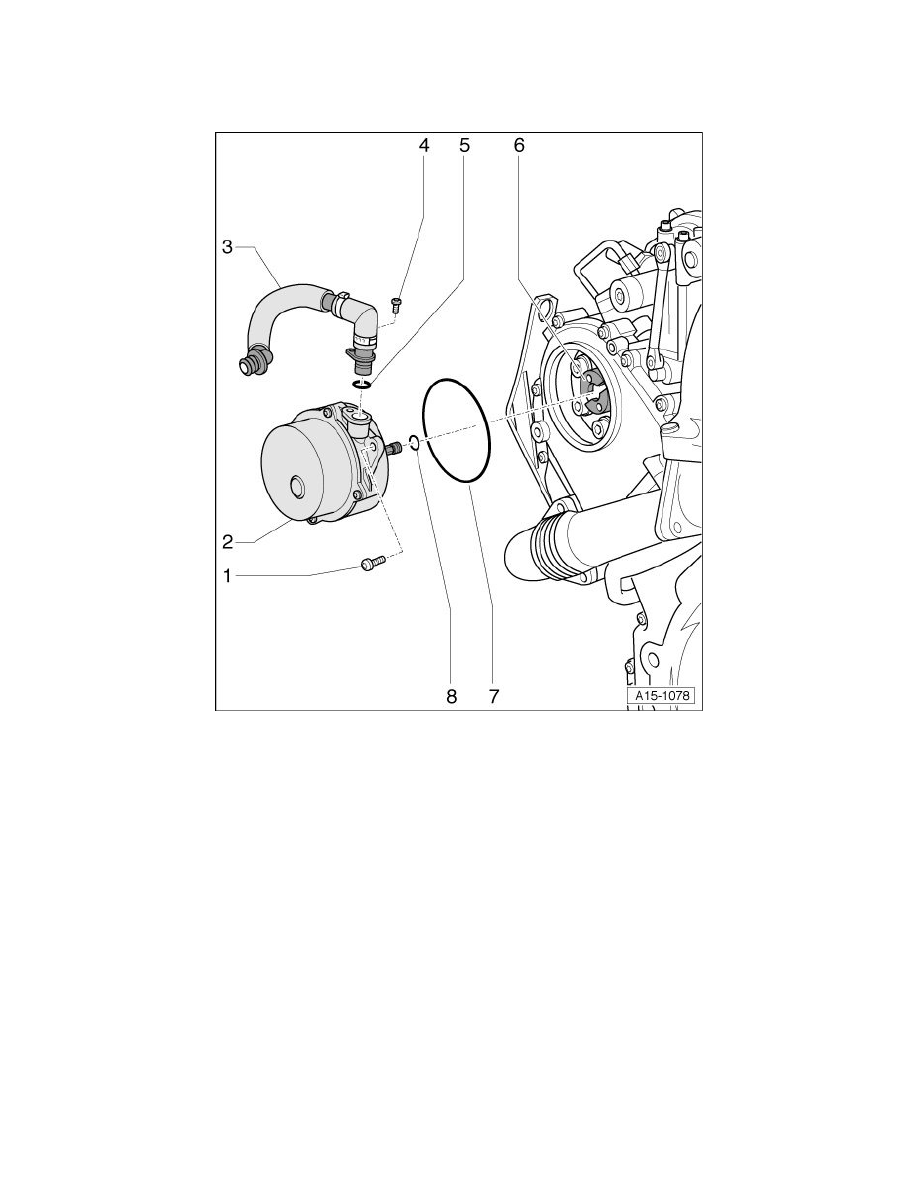

Brake Booster Vacuum Pump Component Overview
Brake Booster Vacuum Pump Component Overview
1
Bolt
‹› 9 Nm.
2
Vacuum pump
‹› Removing and installing, refer to=> [ Vacuum Pump ] See: Vacuum Pump
3
Vacuum hose
‹› secure with hose clamps that match those used in production.
4
5 Nm
5
O-Ring
‹› Replace
6
Camshaft
7
O-Ring
‹› Replace
