A6 Quattro Wagon V6-3.2L (BKH) (2006)
Exhaust Pipe: Service and Repair
Right Exhaust Pipe with Catalytic Converter
Right Exhaust Pipe with Catalytic Converter
Removing
‹› All cable ties which are opened or cut open when removing, must be replaced in the same position when installing.
-

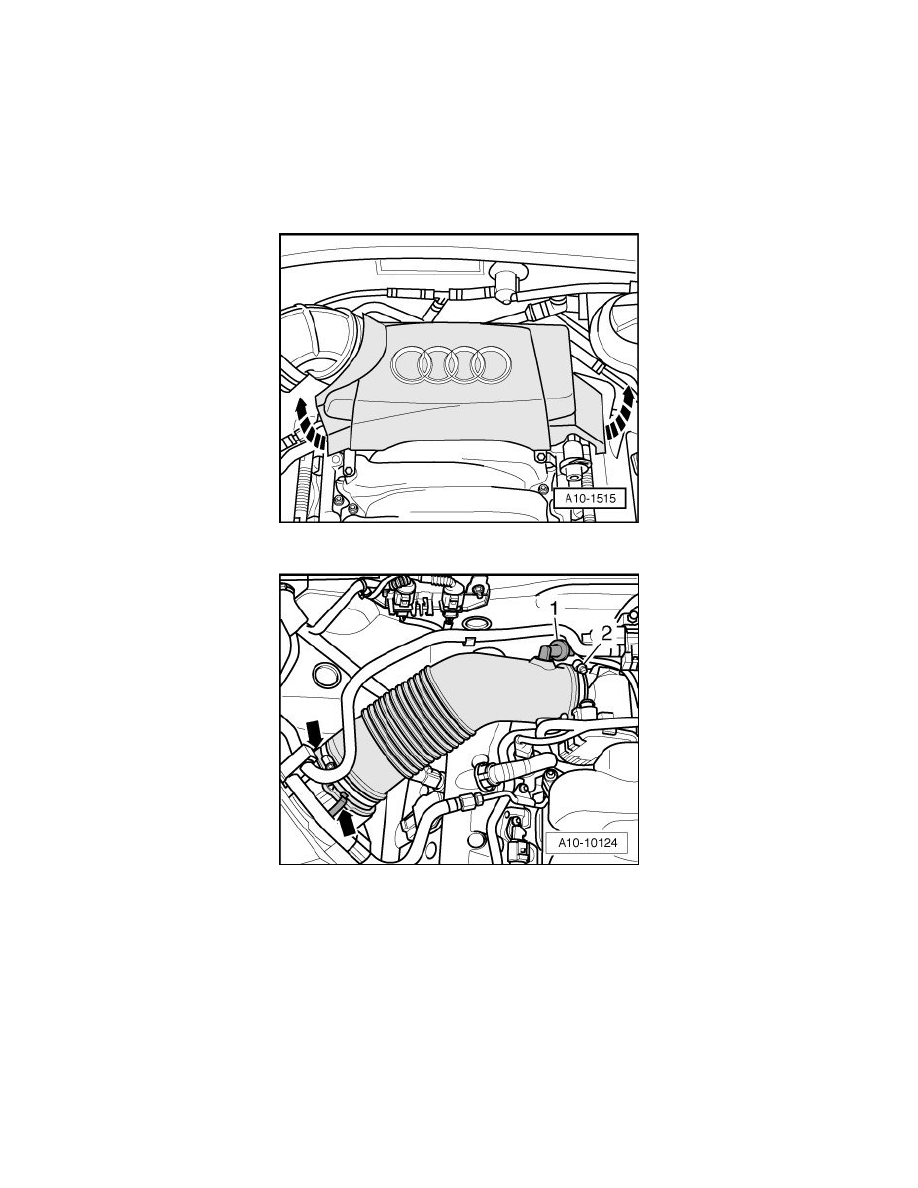

Pull rear engine cover off - arrows -.
-
Disconnect check valve - 1 - from connection at air duct hose.
-
Remove the air duct hose, thereby loosening the hose clamp - 2 - and opening the clips - arrows -.
-
Disconnect the electrical harness connector - 2 - for Oxygen Sensor (O2S) Behind Three Way Catalytic Converter (TWC) (G130) and free up the
wiring.
