A6 Quattro Wagon V6-3.2L (BKH) (2006)
/Page-5828002.png)
-

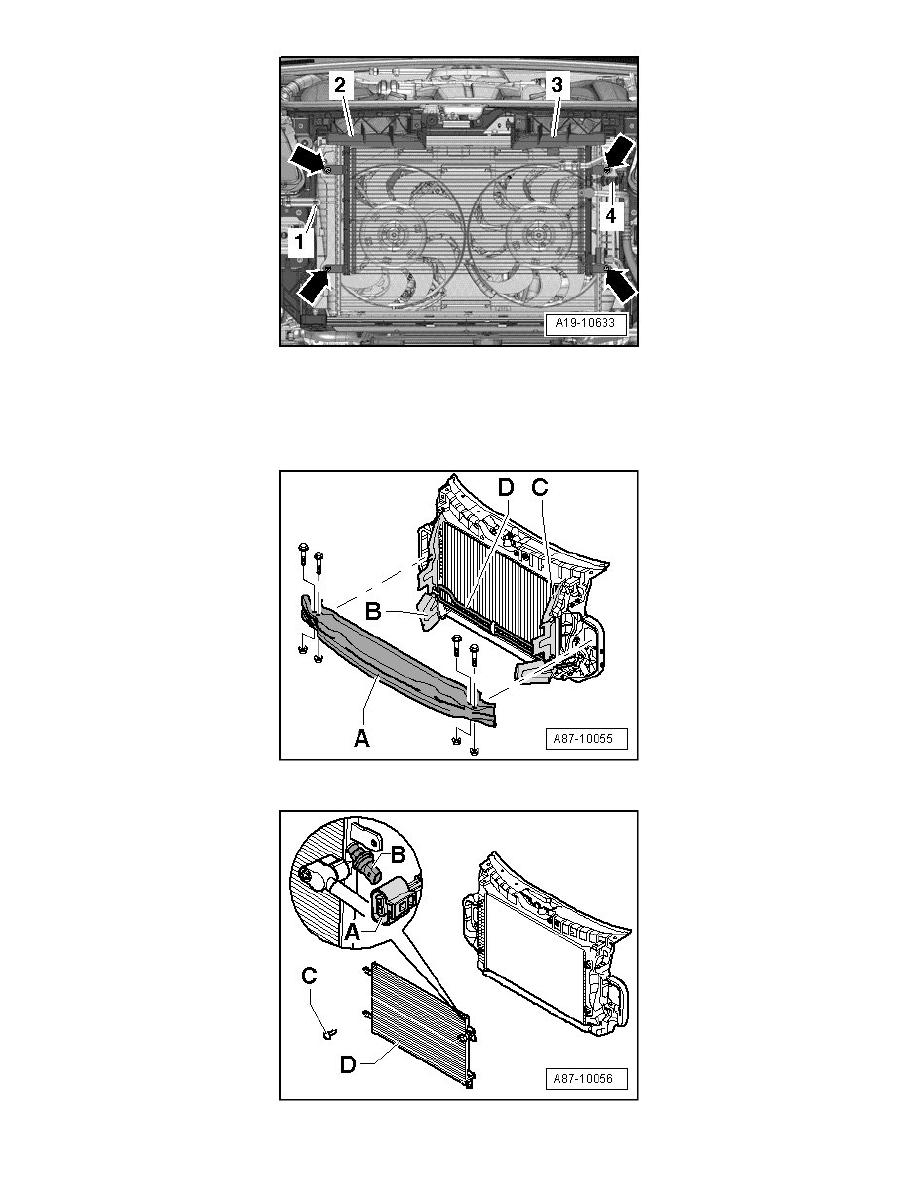

Remove air ducts - 2 - and - 3 - (e.g. for Audi RS6, not available in all versions).
‹› Item - 4 - shows the electrical connection to the A/C Pressure/Temperature Sensor (G395)
-
If necessary, remove the power steering oil cooler - D - from the front end module (not necessary for all versions).
-
Disconnect the connector - A - from the A/C Pressure/Temperature Sensor (G395) - B -.
-
Disconnect refrigerant lines from condenser => [ Refrigerant Lines, Disconnecting from Condenser and Connecting ] See: Hose/Line
