A6 Quattro Wagon V6-3.2L (BKH) (2006)
-

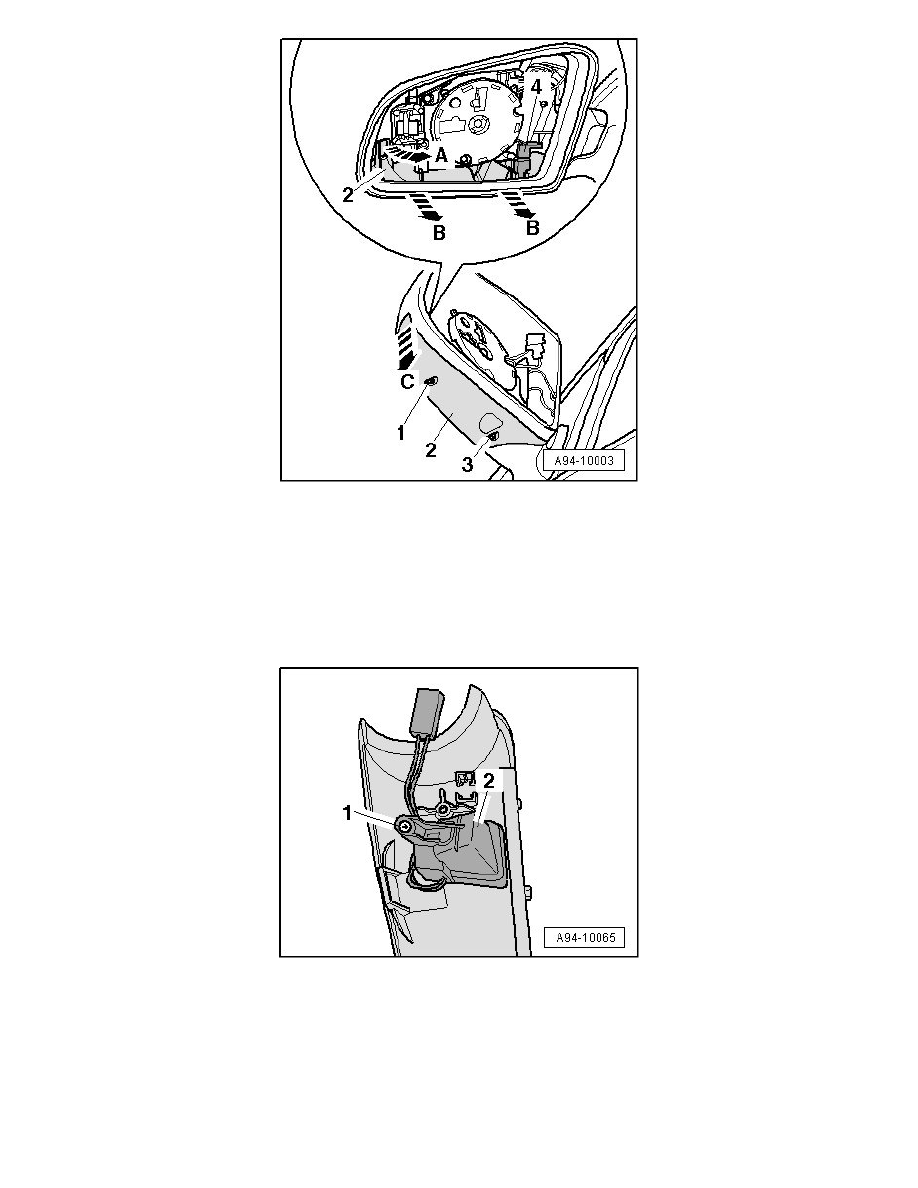

Release clip - arrow a -.
-
Pull housing a little off cover - 2 - - arrows B - and press cover downward at outside - arrow C -.
-
Pull cover off from mirror mount.
-
Disconnect electrical connector - 4 -.
-
Remove bolt - 1 - and disengage entrance light in exterior mirror - 2 - at cover.
Installing
Install in reverse order of removal, observing the following:
‹› Entire entry light in exterior mirror must be replaced if LED is faulty.
-
Attach mirror glass at mirror adjusting unit and press on mirror glass.
‹› Make sure to press only in mirror center.
